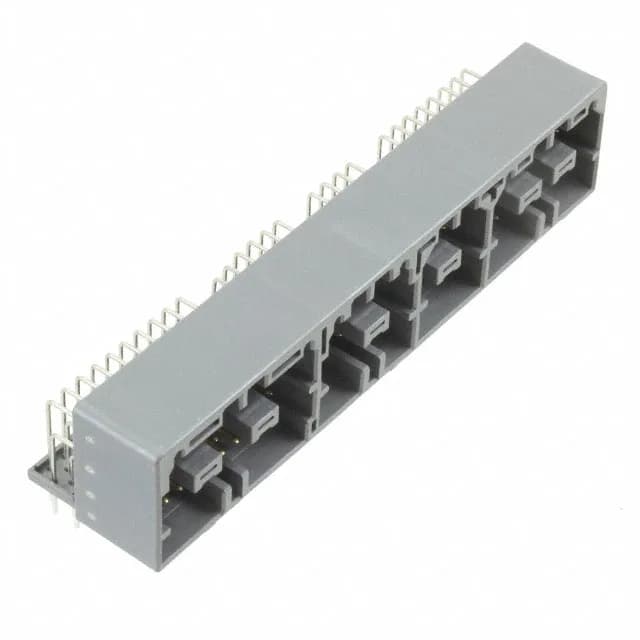

TE Connectivity AMP Connectors Multi-Lock series, 1-5178203-6, Board to Cable/Wire style pin header, 100 positions, 4 rows, shrouded - 4 wall, right-angle board edge mount, gold mating contacts, latch holder fastening, -30°C ~ 105°C operating temperature.
| Parameter | Value |
|---|---|
| Series | Multi-Lock |
| Type | Tab |
| Mounting | Board Edge, Through Hole, Right Angle |
| Fastening type | Latch Holder |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Mounting Brackets |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Rectangular |
| Rows | 4 |
| Positions | 100 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.157\" (4.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.280\" (7.11mm) |
The latch holder fastening system provides a positive lock against vibration, a practical consideration for the automotive and general-purpose applications listed in the spec.
Row spacing on the mating interface is 0.098 inch (2.50 mm), a dimension that must match the mating housing's cavity layout.
Row spacing on the mating interface is 0.098 inch (2.50 mm).
Yes, it is listed as RoHS compliant.
