TE Connectivity AMP Connectors 1-51864-0
MPN1-51864-0
Active

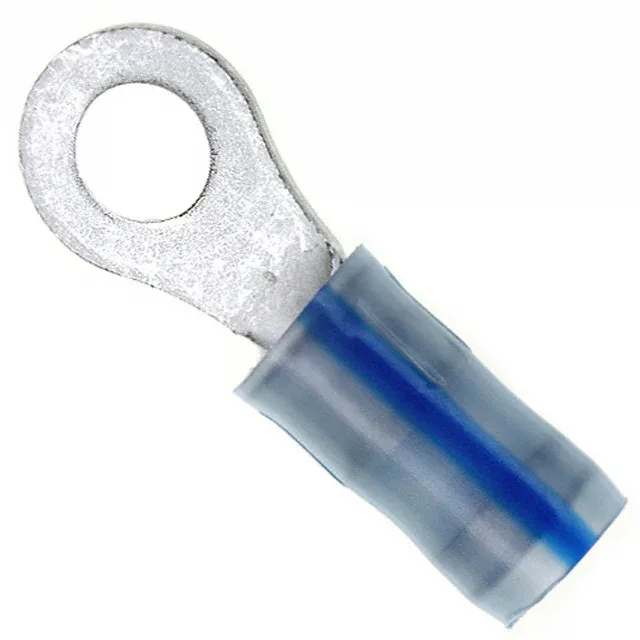

CONN RING CIRC 16AWG #8 CRIMP
$0.8Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16 AWG |
| Color | Blue, Blue Stripe |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Insulation Restriction |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.906\" (23.01mm) |
| Insulation diameter | 0.063\" ~ 0.130\" (1.60mm ~ 3.30mm) |
