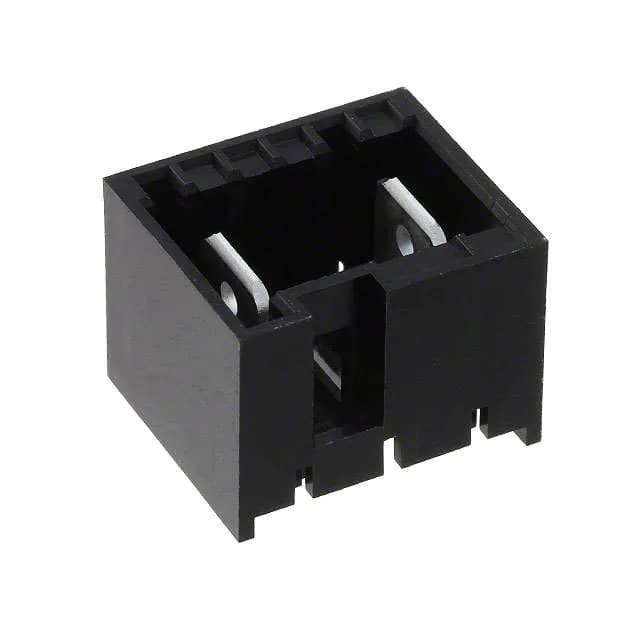

TE Connectivity AMP Connectors 1-521388-3, header, board-to-cable/wire, 3 positions (2 loaded), 5.00mm pitch, shrouded-4 wall, through-hole solder, latch holder, tin contacts, UL94 V-0, -40°C to 120°C.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Brass |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
For a BOM that requires a like-for-like drop-in, the base product number 521388 may share the same footprint and pinout; verify the exact circuit count and keying against your mating half before committing.
The mating pitch is 0.197" (5.00mm), single row, with 3 positions (2 loaded).
