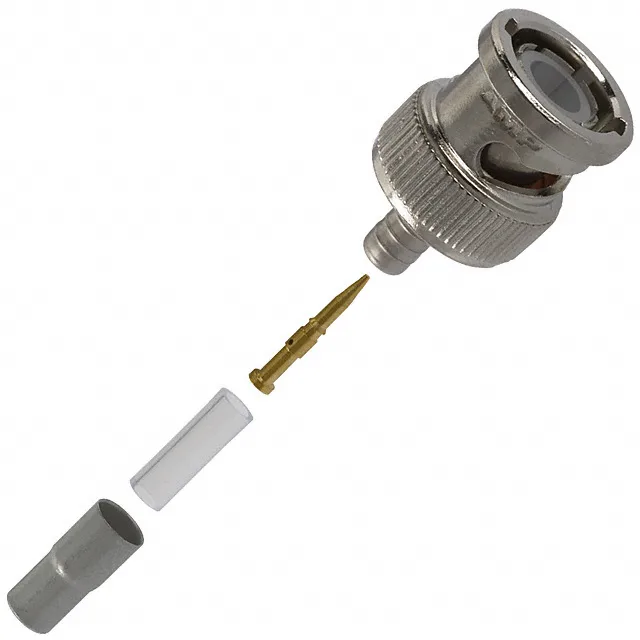

1-5227079-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1-5227079-6 BNC Plug, 50 Ohm, 4 GHz

MPN1-5227079-6
Active

TE Connectivity, BNC Plug, Male Pin, 1-5227079-6, 50 Ohm, 4 GHz, 500 V, Crimp Termination, Bayonet Lock, Free Hanging, Bulk.

$4.2700Ref. price · indicative, final on quote
1-5227079-6 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-5227079-6 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-174, 188
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyethylene (PE)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingTin

Product details

It's a crimp-termination field-installable connector built for RG-174 and RG-188 cable groups — the two most common thin-diameter coax types for patch cords and test leads.

Rated to 4 GHz with a 0.2 dB insertion loss, this plug covers the full BNC band through low microwave frequencies — fine for GPS antenna feeds and lab instrumentation up to S-band.

Kit Contents and Termination

Supplied as a 4-piece kit: the connector body, centre contact, crimp ferrule, and a polyethylene dielectric sleeve. The brass body gets a nickel finish for corrosion resistance in lab or light industrial environments; the centre contact is tin-plated brass. No solder, no waiting.

Frequently asked questions

What cables does 1-5227079-6 fit?

The 1-5227079-6 is specified for RG-174 and RG-188 cable groups. It will not fit RG-58 — that cable diameter is too large for the crimp ferrule.

What is the insertion loss and impedance of 1-5227079-6?

The connector is rated for 50 Ohms impedance with a maximum insertion loss of 0.2 dB, and operates up to 4 GHz.
