TE Connectivity AMP Connectors 1-5227161-7

TE 1-5227161-7 BNC Jack, 50 Ohm, 4 GHz, Panel Mount

MPN 1-5227161-7
Active

TE Connectivity 1-5227161-7 BNC jack, 50 Ohm, 4 GHz, 500 V, panel mount bulkhead, right-angle solder termination, nickel body, 1 port.

$5.9000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-5227161-7 key specifications
ParameterValue
MountingPanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageTube
FeaturesBoard Guide, Isolated

All specifications

1-5227161-7 additional specifications
ParameterValue

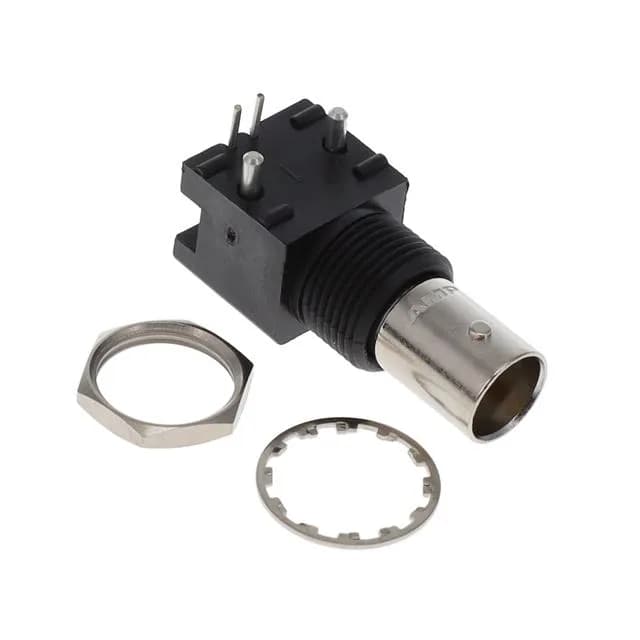

Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder

Product details

BNC Bulkhead Jack with Right-Angle PCB Tail

RF Performance and Bandwidth Ceiling

The 4 GHz maximum frequency is the practical bandwidth limit for this BNC interface. At 50 Ohm nominal impedance, the connector maintains a controlled signal path up to that frequency; beyond 4 GHz, the BNC interface geometry introduces mode conversion and return loss degradation. For systems operating at or below 4 GHz — typical for test equipment, broadcast video, and lower-band RF instrumentation — this jack delivers a clean 50 Ohm path. The 500 V rating is a dielectric withstand figure, not a continuous operating voltage at high frequency; derate for RF power applications per the system's VSWR and peak envelope power.

The right-angle solder tail exits the connector body perpendicular to the panel face, so the PCB must be oriented parallel to the panel plane. The board guide feature assists alignment during PCB insertion.

Mating Cycles and Mechanical Endurance

The bayonet lock provides a positive mechanical connection without the thread engagement time of a threaded coupling. The centre contact material is phosphor bronze, which offers good spring properties for repeated mating, but the 500-cycle rating means the contact force will degrade beyond that count, increasing contact resistance and potential signal reflection. For permanent installations, the cycle count is not a concern; for frequent reconnection, plan for replacement after the rated life.

MPN
1-5227161-7
