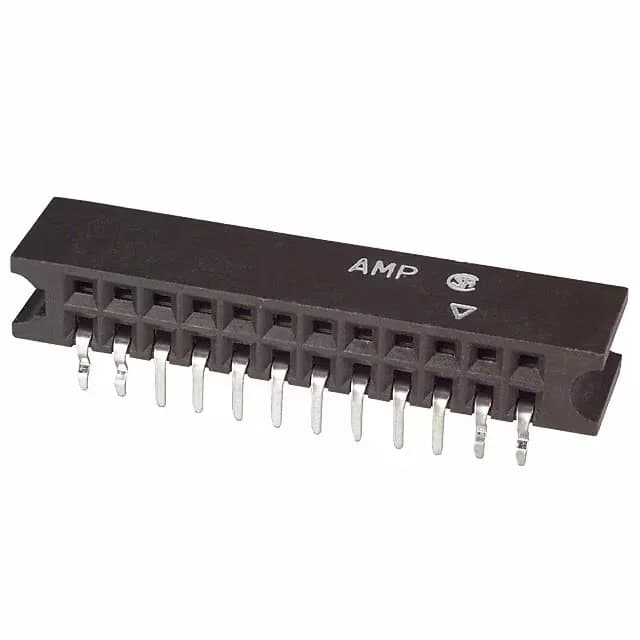

TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 1-534204-1, 24 positions, dual row, 0.100" (2.54 mm) pitch, gold mating contact, through-hole right-angle, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Kinked Pin, Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-534204-1: The receptacle stands 0.238" above the board and uses a 0.115" kinked solder tail — the kink provides retention during wave solder before the joint solidifies. Guide pin ears on the housing align the mating header before the contacts engage, reducing the risk of bent pins in blind-mate board stacks.
The listed style is Board to Board and the connector type is a Receptacle with female square-pin sockets.
