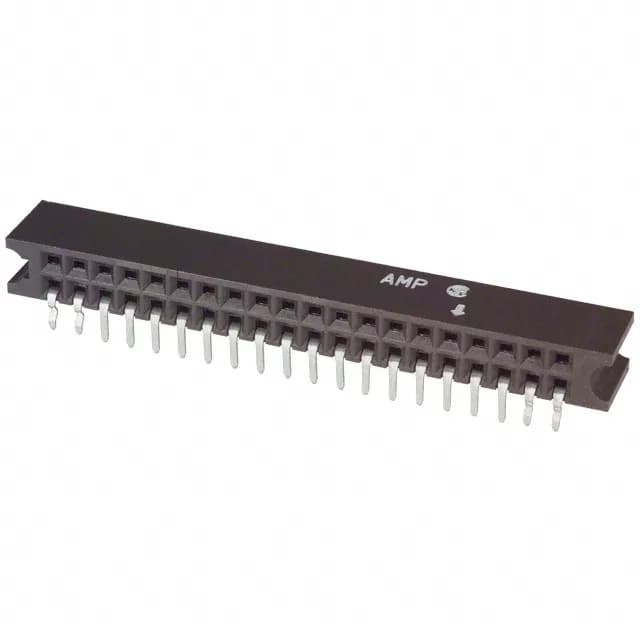

TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 1-534204-2, 40 positions, dual row, 0.100" (2.54mm) pitch, gold mating contacts, through-hole right-angle, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Kinked Pin, Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-534204-2 is the 40-position member of TE's AMPMODU Mod II receptacle line, a dual-row board-to-board socket with push-pull fastening. Gold-plated mating contacts on phosphor bronze terminals, through-hole right-angle mounting with kinked solder posts for retention.
The manufacturer supplies RoHS and REACH compliance documentation for this AMPMODU Mod II receptacle. Contact TE Connectivity AMP Connectors for the current compliance certificates.
