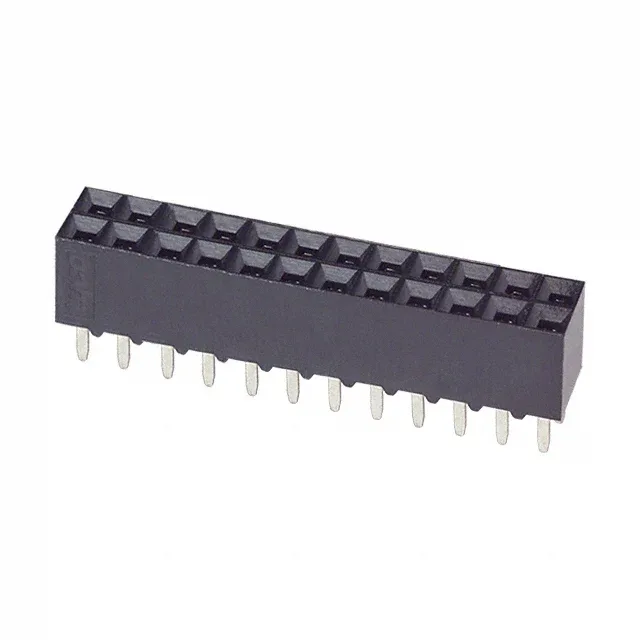

TE Connectivity AMP Connectors AMPMODU Mod IV, 24-position dual-row female socket receptacle, 0.100" (2.54mm) pitch, through-hole solder termination, gold mating finish, rated 2A per contact, -65°C to 125°C operating range.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-534998-2: Rated at 2A per contact with a -65°C to 125°C operating window, this connector handles thermal cycling from cold-soak to underhood temperatures without derating concerns at the rated current.
Supplied in tube packaging.
The mating pitch is 0.100" (2.54mm), and the row spacing is also 0.100" (2.54mm). This is a standard 0.100" grid dual-row receptacle.
No — it is listed as RoHS non-compliant because the solder tail finish is tin-lead (150.0µin). Check your exemption rules if your assembly requires full RoHS compliance.
Rated 2A per contact. The wide -65°C to 125°C temperature range means no derating is needed at the rated current across the full operating band.
