TE Connectivity AMP Connectors 1-534998-3 — Female Socket Headers

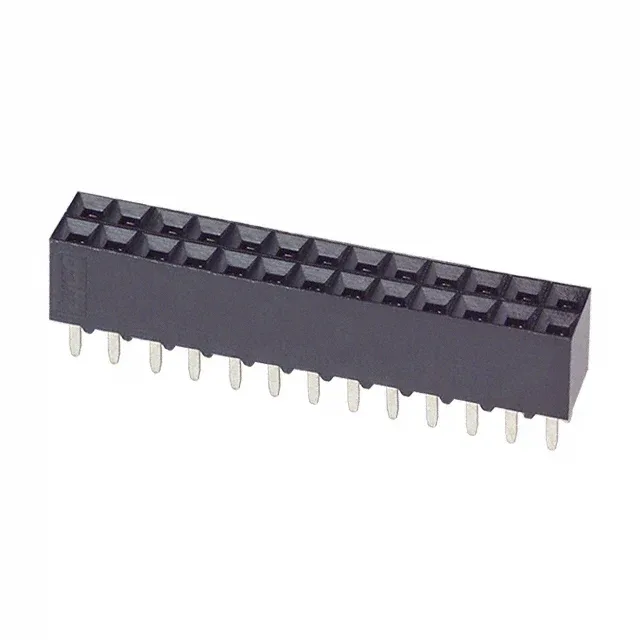

1-534998-3 TE Connectivity AMPMODU Mod IV 26 Position

MPN1-534998-3
Active

TE Connectivity AMPMODU Mod IV, 26-position dual-row receptacle, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated mating contacts, rated 2 A per circuit, -65°C to 125°C operating range.

$5.2900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-534998-3 datasheet (PDF)
RoHSNot applicable
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-534998-3 key specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Current rating2A
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.265\" (6.73mm)
Insulation materialThermoplastic, Glass Filled
StyleBoard to Board or Cable

All specifications

1-534998-3 additional specifications
ParameterValue
PackageTube
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

26-Position Dual-Row Receptacle – Board-to-Board or Cable Interface

The 1-534998-3: This 26-position receptacle from the AMPMODU Mod IV series mates with matching 0.100-inch pitch pin headers, supporting board-to-board or cable-to-board configurations. The dual-row layout with 0.100-inch row spacing keeps the PCB footprint on a standard grid, so board routing stays predictable. The glass-filled thermoplastic housing (black) holds up to wave solder and cleaning without distortion.

The base product number is 534998; the full 1-534998-3 order code is the standard TE Connectivity AMP Connectors part number.

Frequently asked questions

Where can I buy 1-534998-3 and how do I get a price?

Submit an RFQ for current pricing and availability – no stock-holding claim is made on this page.

What is the mating connector for 1-534998-3?

This receptacle mates with a 0.100-inch pitch, 26-position dual-row pin header from the AMPMODU Mod IV series.

What is the pitch of the 1-534998-3 connector?

The mating pitch is 0.100 inch (2.54 mm), with the same 0.100-inch row spacing. This is a standard grid for through-hole PCB layouts.
