TE Connectivity AMP Connectors AMPMODU Mod IV, 28-position dual-row female socket header, 0.100" (2.54 mm) pitch, 2 A per contact, gold mating finish, through-hole solder termination, -65°C to 125°C operating range.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 28 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The housing is thermoplastic, glass filled. Note: this part is RoHS non-compliant due to tin-lead plating on the solder tails. If your BOM requires RoHS, a lead-free alternative in the same series may be needed.
The push-pull retention means no locking latch; rely on the PCB mounting for vibration resistance.

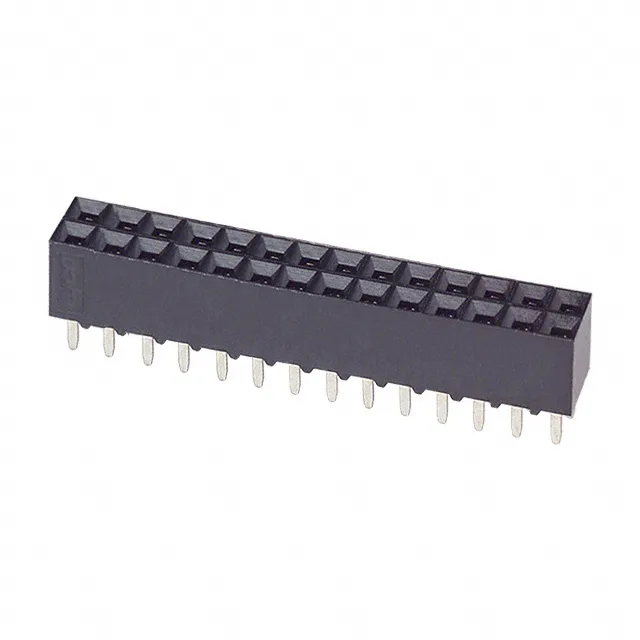

1-534998-4 is a 28-position, dual-row female socket header from the AMPMODU Mod IV series. It uses through-hole solder termination and a push-pull fastening type. Operating temperature range is -65°C to 125°C.
No, 1-534998-4 is RoHS non-compliant because the contact posts have a tin-lead plating finish. If your application requires RoHS compliance, look for a lead-free variant in the AMPMODU Mod IV series.
The push-pull retention means no latch is involved — the header should be through-hole soldered to the PCB for mechanical stability.
