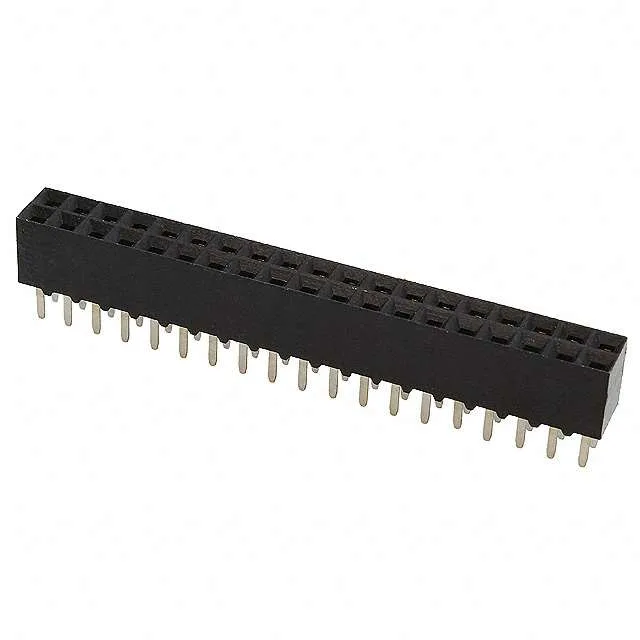

TE Connectivity AMP Connectors AMPMODU Mod IV, 38-position dual-row receptacle, 0.100" (2.54mm) pitch, gold mating finish, 2 A per contact, through-hole solder termination, black thermoplastic housing, tube package.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 38 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-534998-9: The gold-on-gold interface at the mating point ensures stable contact resistance over the connector's service life, while the tin-lead solder tail provides a reliable solder joint to the PCB. The square contact shape mates with standard 0.025" square header pins common in the AMPMODU and BergStik families — no special tooling or adapter needed for the mating half.
Yes. The push-pull fastening provides secure retention without additional hardware.
The receptacle is rated 2 A per contact.
