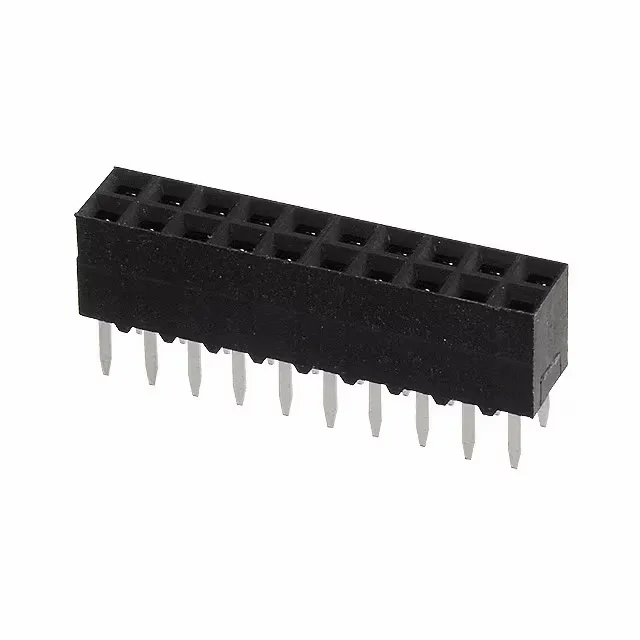

TE Connectivity AMP Connectors AMPMODU Mod IV, 1-535585-0, 20-position dual-row receptacle, 0.100" (2.54 mm) pitch, 2 A per contact, tin-lead plating, through-hole solder termination, black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 1-535585-0: Both the mating contact and the solder post are finished with tin-lead plating at 100 µinch (2.54 µm) thickness — a legacy finish that provides good solderability and corrosion resistance in non-RoHS-exempt applications. The phosphor bronze base material offers reliable spring properties over repeated mating cycles.
The push-pull fastening type means it pairs with standard unshrouded headers — confirm the header's pin count and row spacing match the 20-position, dual-row layout.
The tin-lead plating on both the mating contact and solder post means this part is not RoHS compliant for most applications. Check your local RoHS exemption status before specifying.
