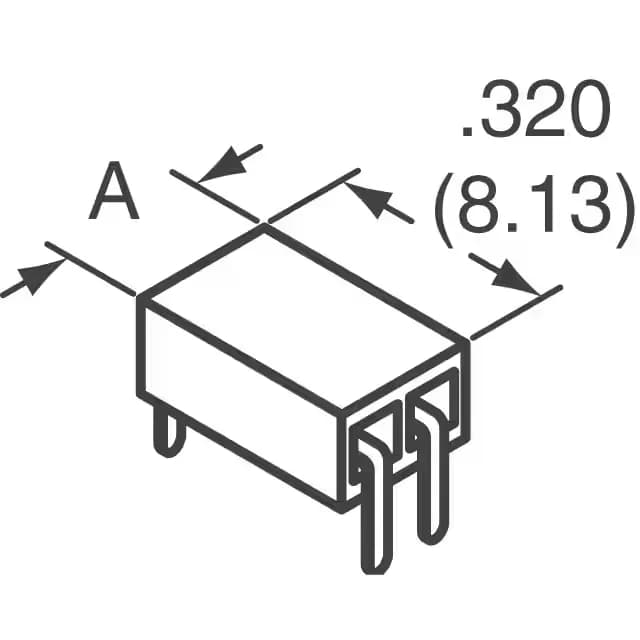

TE Connectivity AMPMODU Mod II, 14-position female socket header, 0.100" (2.54 mm) pitch, right-angle through-hole, gold-plated contacts, tube packaging
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.137\" (3.47mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board |
| Package | Tube |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-535676-3: With 14 positions loaded, the connector occupies a 1.4-inch row length on the PCB.
Termination is solder-only — the through-hole posts are designed for wave or hand soldering. The phosphor bronze contact material with gold-on-nickel plating (30.0 µinch mating, 50.0 µinch post) balances conductivity and corrosion resistance for field-serviceable assemblies.
Yes, 1-535676-3 is part of the AMPMODU Mod II series.
The pitch is 0.100" (2.54 mm), which is the standard spacing for AMPMODU Mod II headers and receptacles.
