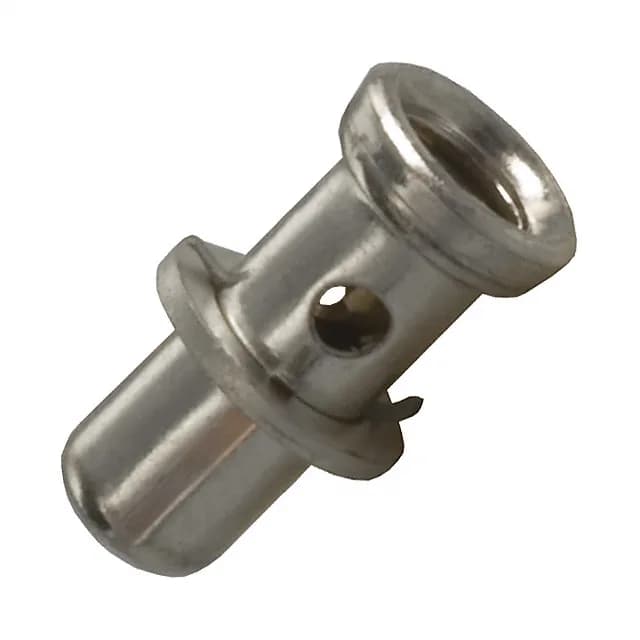

TE Connectivity AMP Connectors pin header socket, order code 1-5380737-0, gold contact finish, beryllium copper contact, accepts 0.018" ~ 0.040" pin diameter, solder termination, no tail, bulk package.
| Parameter | Value |
|---|---|
| Tail type | No Tail |
| Mounting hole diameter | 0.089\" (2.26mm) |
| Operating temperature | -65°C ~ 126°C |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.137\" (3.48mm) |
| Length - overall | 0.253\" (6.43mm) |
| Accepts pin diameter | 0.018\" ~ 0.040\" (0.46mm ~ 1.02mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 1-5380737-0 is a TE Connectivity AMP Connectors pin header socket with gold contact finish and beryllium copper contact material. It accepts pin diameters from 0.018" to 0.040" (0.46mm to 1.02mm) and terminates via solder with no tail.
No official successor or pin-compatible alternative is recorded from the manufacturer.
The 1-5380737-0 is an obsolete part. Availability is limited to surplus or aftermarket channels; a price and quantity can be confirmed by submitting a request for quote (RFQ).
