60-position, 0.100-inch pitch dual-row header for high-density wiring
The shrouded 4-wall design with latch lock/eject hooks ensures the mating receptacle stays locked under vibration and allows field-serviceable unmate without prying.

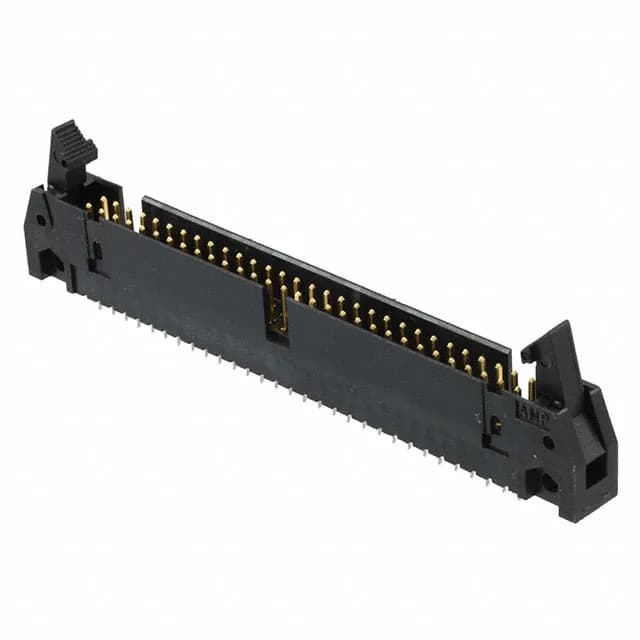

1-5499160-1 TE AMP-Latch 60-Pos Header, 0.100" Pitch, Active
MPN1-5499160-1
Active
TE Connectivity AMP-Latch series, Board to Cable/Wire header, 60 circuits, 0.100" (2.54mm) pitch, dual-row, shrouded 4-wall, latch lock/eject hooks, through-hole solder termination, 1A per contact, -55°C to 105°C, UL94 V-0, active.
$13.3200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating receptacle for TE AMP-Latch 1-5499160-1?
The 1-5499160-1 mates with the standard AMP-Latch IDC receptacle series, typically a 60-position, 0.100" pitch, dual-row socket housing. Confirm the exact receptacle order code against your cable assembly drawing.
Is 1-5499160-1 RoHS compliant?
RoHS compliance is standard for TE AMP-Latch headers in this series. Verify the specific compliance certificate for your lot at quote time.
