TE Connectivity AMP Connectors 1-5499206-0 — Pin Headers

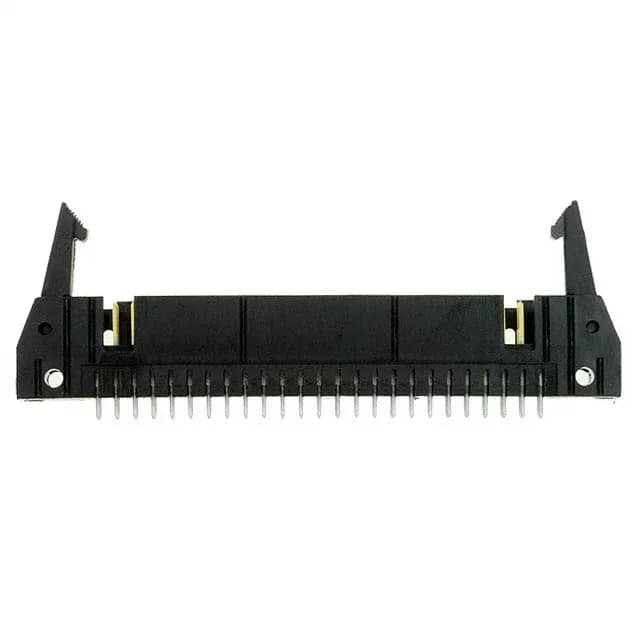

1-5499206-0 TE Connectivity AMP-Latch Header 50 Pos 2.54mm

MPN1-5499206-0
Active

TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 50 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Solder Termination, Through Hole, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, 1A, 250VAC, UL94 V-0

$11.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-5499206-0 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A
Operating temperature-65°C ~ 105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

1-5499206-0 additional specifications
ParameterValue
PackageTray
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

50-position dual-row header for parallel signal cable assemblies

The part ships in a tray. For volume or lead-time questions, submit an RFQ with your target quantity and delivery window.

Mating connector and board footprint

This header mates with AMP-Latch ribbon-cable sockets or IDC receptacles that match the 0.100" pitch and 50-position, dual-row layout. The latch lock/eject hooks require the mating connector to have corresponding latch slots. The through-hole footprint uses 0.110" (2.79mm) post length for the solder tails.

Frequently asked questions

Is 1-5499206-0 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the mating connector for 1-5499206-0?

It mates with AMP-Latch ribbon-cable sockets or IDC receptacles that match the 0.100" pitch, 50-position, dual-row layout, and include latch slots for the eject hooks.
