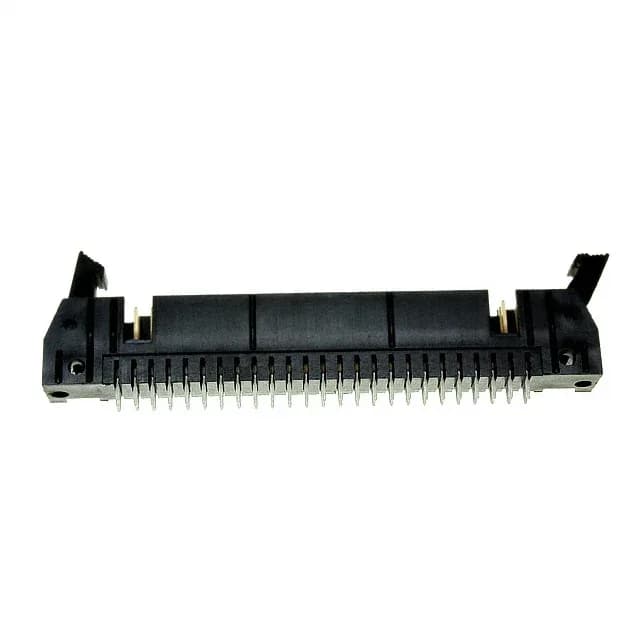

TE Connectivity AMP-Latch, Header, 50 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Latch Lock/Eject Hooks, 1 A, -55°C ~ 105°C, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-5499910-0: This TE Connectivity AMP-Latch header carries 50 positions in two rows at 0.100" (2.54mm) pitch, with a full four-wall shroud that protects the male pins during handling and prevents mis-mating with the wrong receptacle. The latch lock/eject hooks on the short side give a positive mechanical retention to the mating cable assembly — useful in vibration-prone enclosures where a plain friction lock might back out over time.
