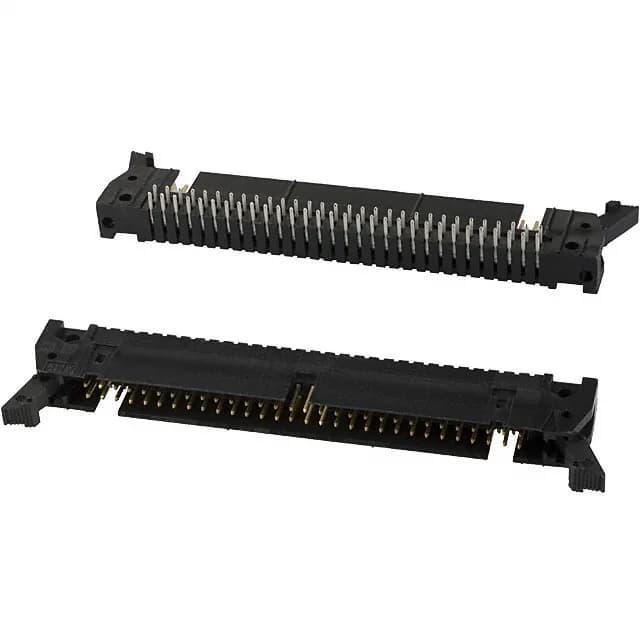

TE Connectivity AMP-Latch series, 1-5499913-1, board-to-cable/wire header, 60 positions, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded-4 wall, gold or gold-palladium mating finish, rated 1A per contact at 250VAC.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.315\" (8.00mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-5499913-1 is a 60-position, 2-row header from TE's AMP-Latch series, designed to mate with standard 0.100-inch pitch IDC ribbon cable receptacles. The short latch lock/eject hooks secure the mating receptacle and provide a positive retention under vibration.
At 0.100-inch (2.54mm) pitch and 60 positions, this header matches the footprint of a standard 60-conductor IDC ribbon cable.
This header mates with AMP-Latch IDC receptacle housings that accept 0.100-inch pitch ribbon cable. Typical mating parts are from the same AMP-Latch series — confirm the position count (60) and latch/eject hook compatibility.
Yes, the 1-5499913-1 is RoHS compliant per TE's certification.
