TE Connectivity AMP Connectors 1-5499923-2 — Pin Headers

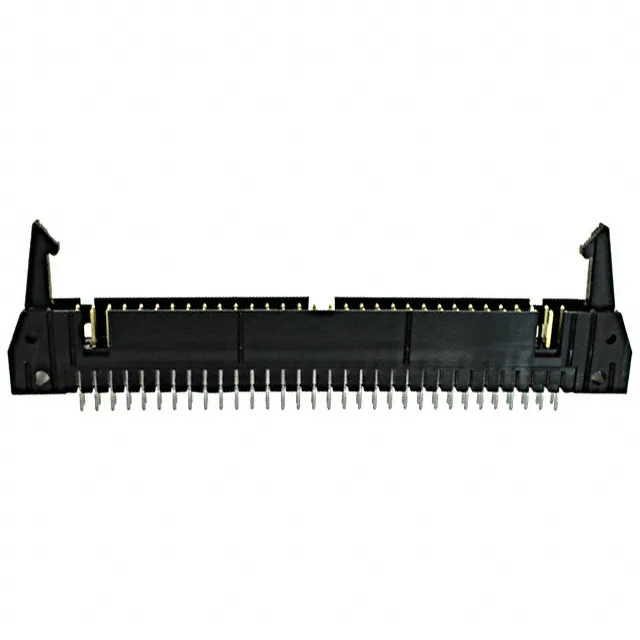

1-5499923-2 TE Connectivity AMP-Latch Header 64 Pos 2.54mm

MPN1-5499923-2
Active

TE Connectivity AMP Connectors AMP-Latch series, Board to Cable/Wire, Header, Male Pin, Solder, Through Hole, 64 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, 1A per Contact, 250VAC, UL94 V-0, Black, -65°C ~ 105°C

$13.4800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-5499923-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-5499923-2 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

1-5499923-2 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions64
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.155\" (3.94mm)
Overall contact length0.684\" (17.37mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

64-Position Shrouded Header for AMP-Latch IDC Cable Assemblies

The 1-5499923-2: This is a TE Connectivity AMP-Latch series vertical header, 64 positions in two rows on 0.100" (2.54mm) pitch, designed to mate with standard AMP-Latch IDC socket connectors.

Termination is through-hole solder with 0.155" (3.94mm) post length and 100.0µin (2.54µm) tin finish on the post. Overall contact length is 0.684" (17.37mm), with a mating contact length of 0.240" (6.10mm). The header includes a keying slot and mounting flange for secure alignment and board retention before soldering.

Frequently asked questions

How can I order 1-5499923-2 or check stock?

1-5499923-2 is an Active part from TE Connectivity AMP Connectors. Stock and current pricing are confirmed at quote time against your BOM quantity. Submit an RFQ for a sourcing response with lead time and volume pricing.

What is the mating connector for 1-5499923-2?

This header mates with standard AMP-Latch IDC socket connectors (e.g., TE 1-111196-2 series) on 0.100" pitch ribbon cable. The latch lock/eject hooks engage the receptacle's locking ears for vibration-resistant retention.

Is 1-5499923-2 RoHS compliant?

Yes, 1-5499923-2 is RoHS3 Compliant.

What is the life cycle status of 1-5499923-2?

The lifecycle status is Active — no end-of-life notice or successor has been announced.
