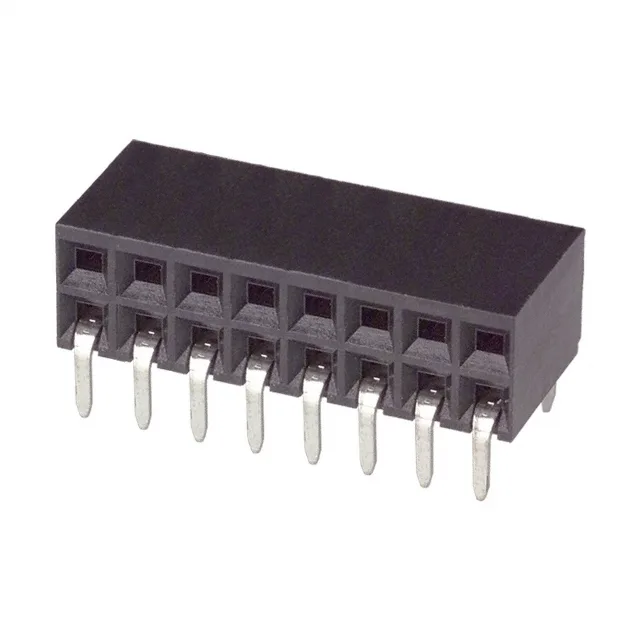

TE Connectivity AMP Connectors AMPMODU Mod II, 16 Position, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Female Socket Receptacle, Gold Mating Contacts, Black Polyester Housing, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-5535512-8: Gold on the mating side handles repeated mating cycles; tin on the post keeps solderability clean.
The wide temperature span covers automotive underhood and industrial cabinet environments. The housing is glass-filled polyester rated UL94 V-0, and the insulation height is 0.238" (6.05mm).
The mating pitch is 0.100" (2.54mm) on both rows, with the same 0.100" (2.54mm) row spacing. This is the standard AMPMODU Mod II pitch and mates with any 0.100" square-pin header.
