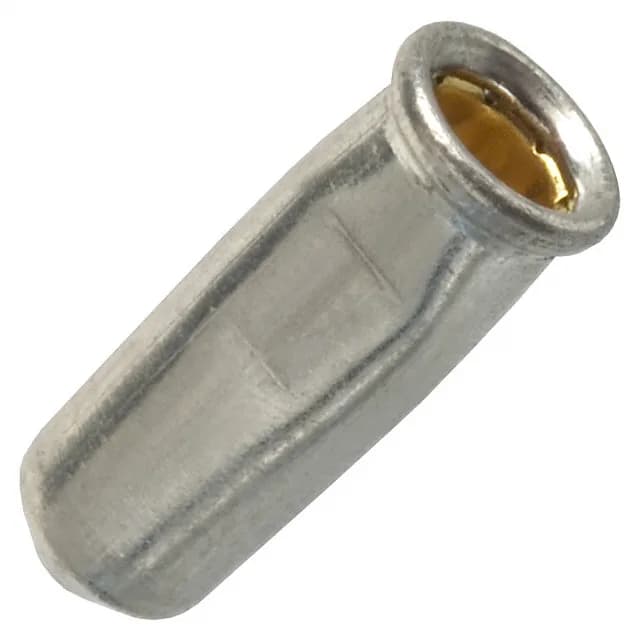

TE Connectivity AMP Connectors Series 5 pin socket, order code 1-5645979-2, accepts 0.042"~0.049" pin diameter, gold-plated beryllium copper contact, 30.0µin plating, 0.118" flange diameter, solder termination, Tape & Reel package.
| Parameter | Value |
|---|---|
| Series | 5 |
| Tail type | No Tail |
| Mounting hole diameter | 0.102\" (2.59mm) |
| Operating temperature | -65°C~126°C |
| Socket depth | 0.145\" ~ 0.275\" (3.68mm ~ 6.99mm) |
| Contact material | Beryllium Copper |
| Package | Tape & Reel (TR) |
| Termination | Solder |
| Contact finish | Gold |
| Board thickness | 0.031\" ~ 0.093\" (0.79mm ~ 2.36mm) |
| Flange diameter | 0.118\" (3.00mm) |
| Length - overall | 0.308\" (7.82mm) |
| Accepts pin diameter | 0.042\" ~ 0.049\" (1.07mm ~ 1.24mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 1-5645979-2 is a Series 5 pin socket from TE Connectivity AMP Connectors, accepting pin diameters from 0.042" to 0.049" (1.07mm to 1.24mm). The 0.118" (3.00mm) flange diameter and solder termination suit through-hole board mounting; the mounting hole diameter is 0.102" (2.59mm).
