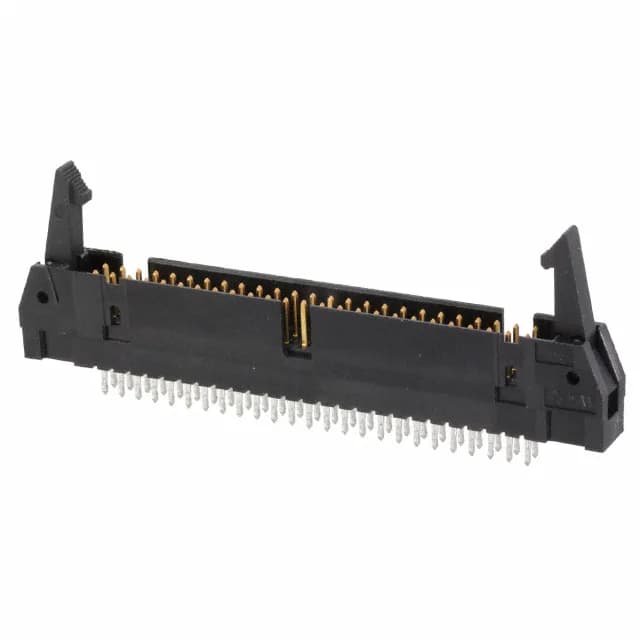

TE Connectivity AMP-Latch series, 1-5746443-0, Board to Cable/Wire header, 50 positions, 2.54mm pitch, shrouded - 4 wall, latch lock/eject hooks, through hole, press-fit/solder termination, 1A per contact, -65°C ~ 105°C
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.174\" (4.42mm) |
| Overall contact length | 0.703\" (17.86mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Rated 1 A per contact, this is a signal-density part — the 50-position count lets you run 50 individual low-current lines (logic, data, sensor signals) through one connector.
All 50 positions are loaded.
Yes, it is fully shrouded with four walls (Shrouded - 4 Wall) and uses a latch lock/eject hooks fastening type for secure mating.
