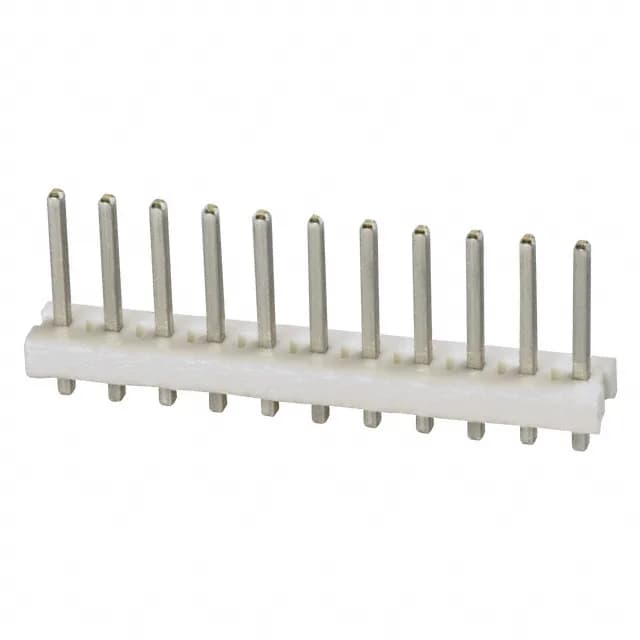

TE Connectivity AMP Connectors MTA-156, 1-640383-1, Header, Male Pin, 11 Positions, 0.156" (3.96mm) Pitch, Through Hole, Unshrouded, 600VAC, UL94 V-0
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.125\" (3.18mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 1-640383-1: It mates with the MTA-156 IDC or crimp receptacle, giving you a complete wire-to-board interconnect at a 0.156" (3.96mm) pitch.
The square male pin accepts the MTA-156 receptacle's crimp or IDC terminal.
It is a single-row, 11-position header with all positions loaded. Mounting is through-hole solder, vertical orientation (no right-angle option). The contact spacing is 0.156" (3.96mm) pitch.
