TE Connectivity AMP Connectors 1-640383-2 — Pin Headers

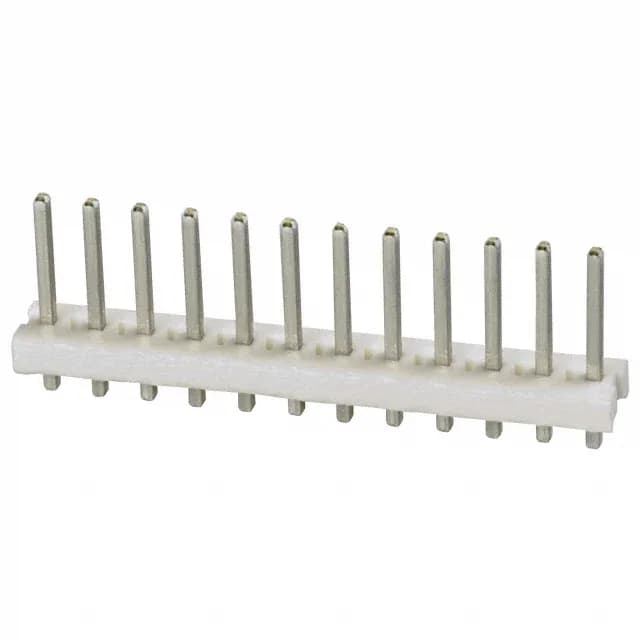

1-640383-2 TE Connectivity MTA-156 Header 12 Pos 3.96mm

MPN1-640383-2
Active

TE Connectivity AMP Connectors MTA-156, 1-640383-2, Board to Cable/Wire, Header, Male Pin, 12 Positions, 1 Row, 0.156" (3.96mm) Pitch, Through Hole, Solder, Tin, Unshrouded

$1.1400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-640383-2 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.125\" (3.18mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-640383-2 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions12
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.650\" (16.51mm)
Contact finish - matingTin
Contact length - mating0.400\" (10.16mm)

Product details

Sizing the board footprint for this MTA-156 header

The 1-640383-2: It terminates via through-hole solder, with a 0.125" (3.18mm) post length and a 0.400" (10.16mm) mating pin length, making it a straight vertical header for board-to-wire connections.

Matching the receptacle and wire gauge

This header mates with standard MTA-156 IDC or crimp receptacles — the 0.156" pitch and unshrouded profile mean the receptacle housing slides over the pins without a shroud wall to guide it.

No stock-holding claim; each order is confirmed against current availability.

Frequently asked questions

What is the pitch of 1-640383-2?

The pitch is 0.156" (3.96mm).

How can I order 1-640383-2 and check availability?

Sourced per RFQ against your BOM quantity.
