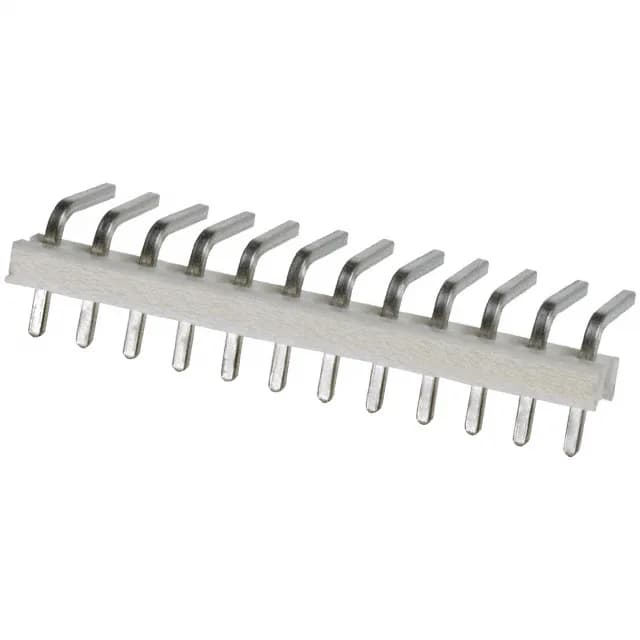

TE Connectivity AMP MTA-156 unshrouded header, 1-640385-2, 12 positions, 0.156" (3.96mm) pitch, right-angle through-hole, tin-plated male pins, UL94 V-0, for board-to-cable/wire applications.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.125\" (3.18mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.390\" (9.91mm) |
Typical applications include general-purpose and industrial wiring.
Tin plating is suited for moderate mating-cycle duty in non-corrosive environments. Termination is solder to the PCB. The contact length on the mating side is 0.390" (9.91mm), and the post length is 0.125" (3.18mm).
The pitch is 0.156" (3.96mm) and it has 12 positions, all loaded in a single row.
It mates with the MTA-156 receptacle housing and the corresponding crimp terminals. The unshrouded header requires a polarized receptacle to prevent mis-mating.
