TE Connectivity AMP Connectors 1-640387-0 — Pin Headers

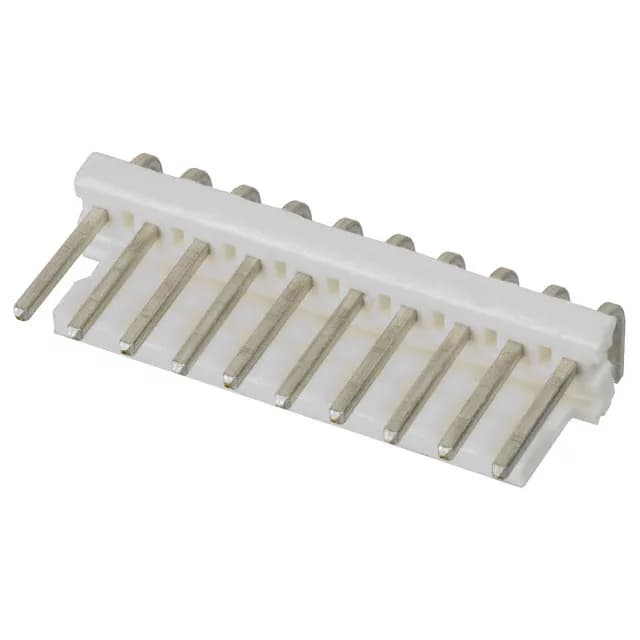

1-640387-0 TE Connectivity MTA-156 Header, 10 Pos, 3.96mm

MPN1-640387-0
Active

TE Connectivity AMP Connectors MTA-156 series, 1-640387-0, Board to Cable/Wire header, 10 circuits, 0.156" (3.96mm) pitch, through-hole right-angle, shrouded 1 wall, friction lock, tin-plated contacts, UL94 V-0.

$1.0800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-640387-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMTA-156
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-640387-0 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.300\" (7.62mm)
Insulation materialThermoplastic, Glass Filled

All specifications

1-640387-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions10
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin
Contact length - mating0.400\" (10.16mm)

Product details

MTA-156 right-angle header for wire-to-board power and signal

The 1-640387-0: This 10-position header from the MTA-156 series mates with the matching MTA-156 receptacle housing and crimp terminals, creating a friction-locked wire-to-board connection rated for 600 VAC. The 0.156" (3.96mm) pitch and single-row layout keep the board footprint compact while leaving room for routing traces between pads.

Active production and sourcing posture

Listed as Active with ROHS3 compliance. Sourced per RFQ against the BOM quantity; current pricing and lead time confirmed at quote time.

Temperature range and flammability rating

Rated for -55°C to 105°C operating range, covering most indoor industrial and general-purpose enclosures. The UL94 V-0 glass-filled thermoplastic housing meets the flammability requirement for equipment inside an enclosure.

Frequently asked questions

Where can I buy 1-640387-0?

1-640387-0 is sourced to order against an RFQ. Submit a request for current pricing and lead time; no stock-holding claim is made here.

What is the pitch and position count of 1-640387-0?

It is a single-row header with 10 positions at 0.156" (3.96mm) pitch.
