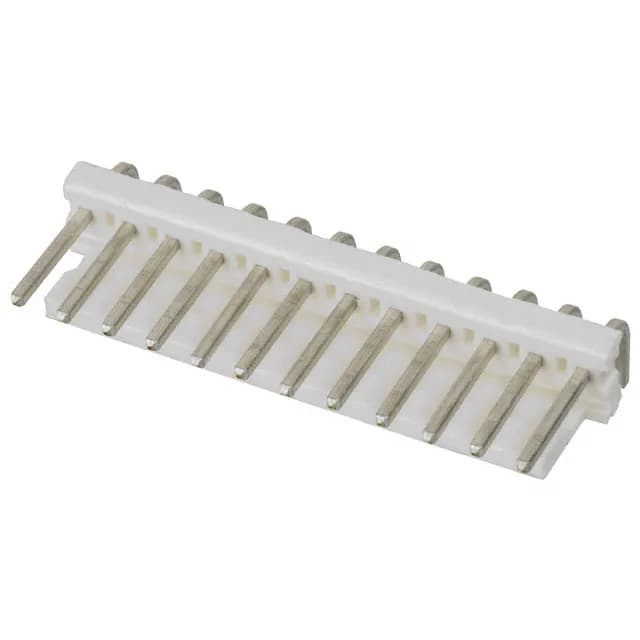

TE Connectivity AMP Connectors MTA-156, Header, 12 Positions, 0.156" (3.96mm) Pitch, Through Hole, Right Angle, Friction Lock, UL94 V-0
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The single shrouded wall guides the mating connector into alignment and protects the pins from accidental stubbing during assembly. The header accepts the matching MTA-156 receptacle housing (sold separately) with crimp terminals. The friction lock is a standard feature across the MTA-156 series, so any 12-position receptacle with the same lock geometry mates here.
The mating half is a 12-position MTA-156 receptacle housing with friction lock, using the matching crimp terminals. The 0.156" pitch and single-row layout are standard across the series, so any 12-position MTA-156 receptacle with the same lock mates correctly.
