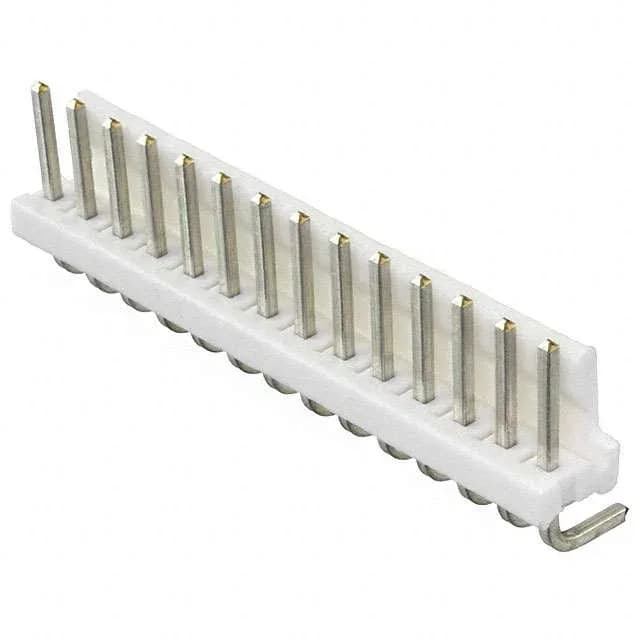

TE Connectivity AMP Connectors MTA-156, Header, Board to Cable/Wire, 14 Positions, 1 Row, 0.156" (3.96mm) Pitch, Through Hole, Right Angle, Shrouded - 1 Wall, Friction Lock, Tin Contact Finish Mating & Post, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 1-640387-4 is a 14-position, single-row header on a 0.156" (3.96mm) pitch – wider than the common 0.100" IDC ribbon spacing, so it's meant for discrete wires or a 0.156"-pitch ribbon, not standard 0.100" cable.
The pitch is 0.156" (3.96mm) – wider than the 0.100" standard used in IDC ribbon cable, so verify your wire or cable spacing matches before ordering.
Yes, it is shrouded with a single wall (1-wall shroud) – it guides the mating housing on one side, leaving the other side open. This is typical for MTA-156 headers that use a friction lock.
Yes, the fastening type is friction lock – it provides retention against vibration without a separate locking clip.
