TE Connectivity AMP Connectors MTA-156 series header, 1-640388-2, 12 positions, 3.96mm pitch, shrouded 1 wall, friction lock, through hole, tin-plated male pins, 600VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |

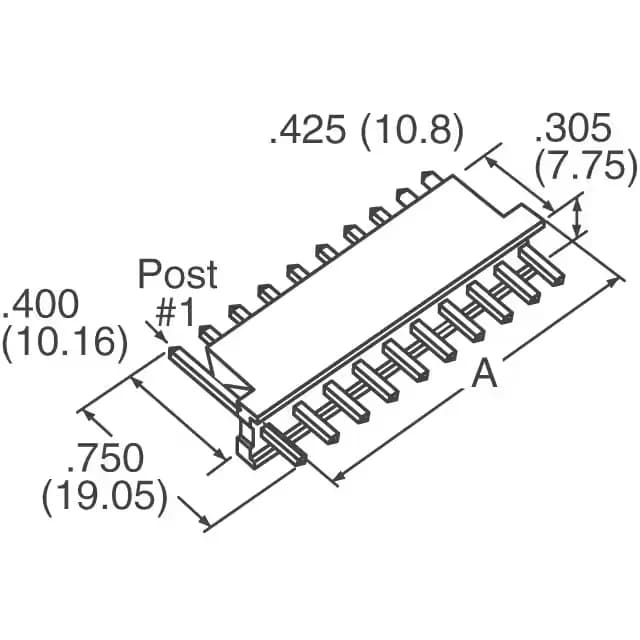

| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 1-640388-2: The housing is shrouded on one wall and uses a friction lock to secure the mating receptacle, reducing the chance of accidental disconnection under vibration.
The single-wall shroud guides the receptacle into alignment during mating and provides basic polarization — it won't prevent a wrong-side insertion, but it keeps the pins from bending on a straight mate.
We source 1-640388-2 through independent distribution channels against your BOM quantity.
Yes, the 1-640388-2 header is designed to mate with MTA-156 receptacles — same 3.96mm pitch and friction-lock system. Verify the receptacle order code against your assembly drawing.
