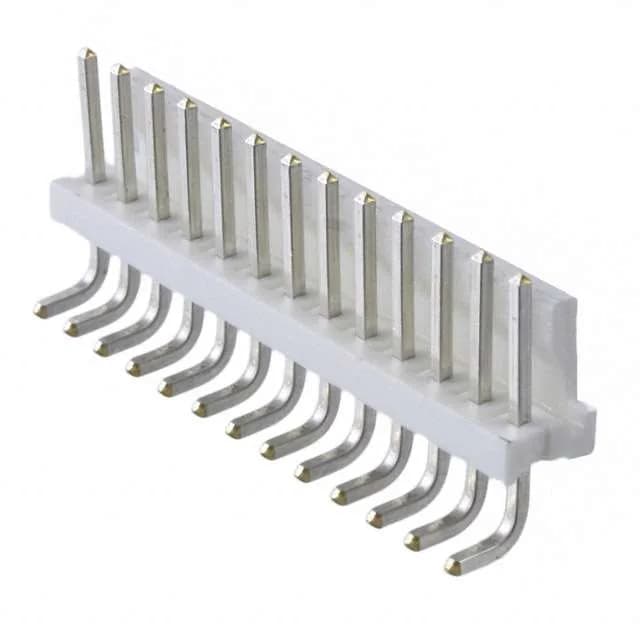

TE Connectivity AMP Connectors MTA-156 series, 1-640389-3, Board to Cable/Wire header, 13 circuits, 0.156" (3.96mm) pitch, Through Hole, Right Angle, Tin plated male pins, Friction Lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 13 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 1-640389-3 is a 13-position, single-row header from the TE MTA-156 series, designed for board-to-cable/wire applications. It uses a 0.156" (3.96 mm) pitch and mounts through-hole with a right-angle orientation, letting the wire exit parallel to the PCB surface.
The 1-640389-3 mates with an MTA-156 receptacle housing (e.g., 1-640456-3) using the appropriate crimp socket contacts. The 0.156" pitch and friction lock are specific to the MTA-156 series.
