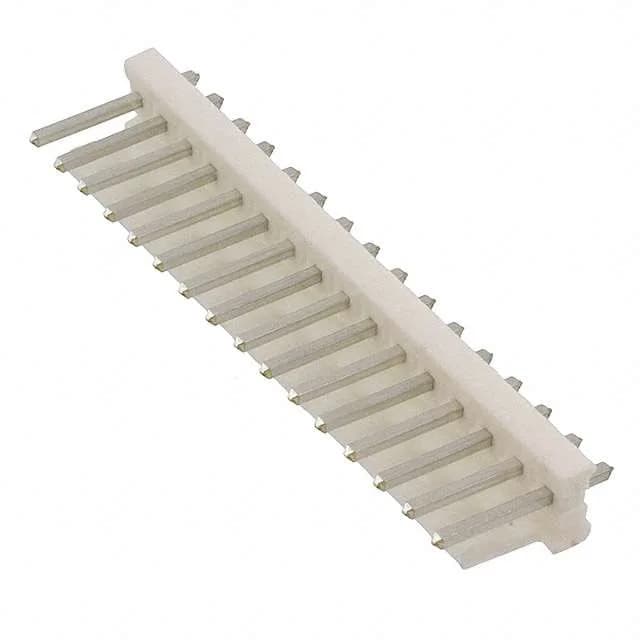

TE Connectivity AMP Connectors MTA-156 header, 1-640445-6, 16 circuits single-row, 3.96mm pitch, shrouded 1-wall, friction lock, through-hole solder, tin-plated contacts, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 1-640445-6 is a 16-position, single-row header from TE's MTA-156 series, pitched at 0.156" (3.96mm) — the same pitch as the MTA-156 IDC receptacle family it mates with. Rated at 600VAC and -55°C to 105°C, this is a general-purpose industrial header — common on power distribution boards, control I/O, and appliance interconnects where 3.96mm pitch keeps routing simple on a 2-layer board.
Yes — the 0.156" (3.96mm) pitch, single-row layout, and friction lock are designed to mate with TE's MTA-156 IDC receptacle housings and their matching crimp terminals.
