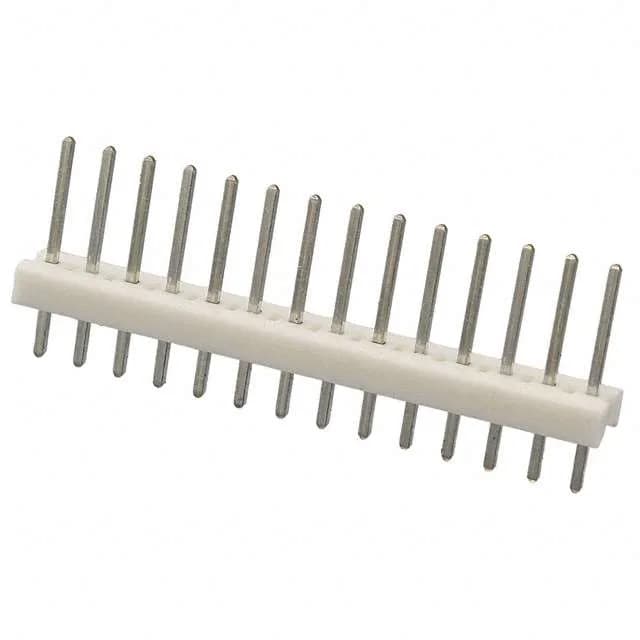

TE Connectivity AMP Connectors MTA-100, 1-640452-4, Header, Male Pins, Solder, Through Hole, 14 Positions, 0.100" (2.54mm) Pitch, Unshrouded, Tin Contact Finish, UL94 V-0
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The tin-plated contacts and natural thermoplastic insulation (UL94 V-0 rated) suit general-purpose signal interconnects inside enclosures where vibration is moderate.
With 14 positions loaded and a 0.100" (2.54mm) mating pitch, this header matches standard IDC ribbon cable and MTA-100 receptacles.
This unshrouded header mates with MTA-100 series receptacles (female housings) that accept 0.100" pitch crimp terminals. Confirm the receptacle's circuit count and keying match the 14-position layout.
