TE Connectivity AMP Connectors 1-640454-2 — Pin Headers

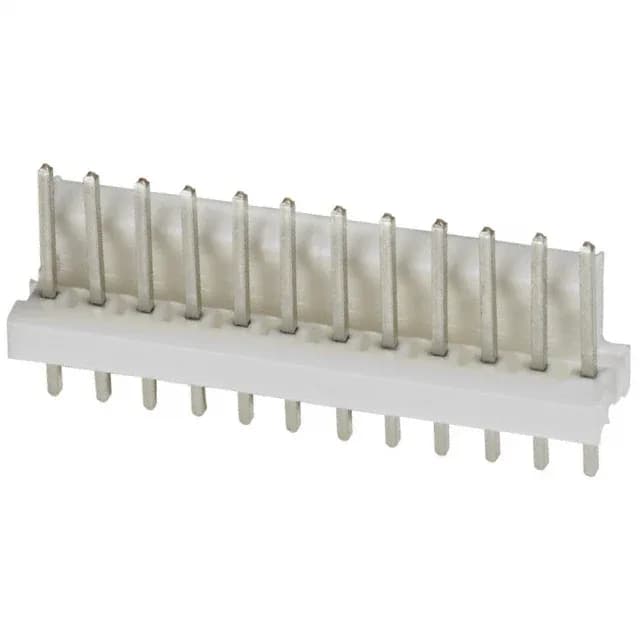

1-640454-2 TE Connectivity MTA-100 Header 12 Pos 2.54mm

MPN1-640454-2
Active

TE Connectivity AMP Connectors MTA-100 series, 1-640454-2, header, male pins, 12 circuits, 0.100" (2.54mm) pitch, single row, vertical through-hole, shrouded 1 wall, tin-plated contacts, UL94 V-0, active production.

$0.7000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-640454-2 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.305\" (7.75mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

1-640454-2 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions12
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Overall contact length0.535\" (13.59mm)
Contact finish - matingTin
Contact length - mating0.295\" (7.49mm)

Product details

Pitch, position count, and what mates with it

The 1-640454-2: The single-wall shroud guides the mating housing from three sides; the open side means the header is not fully keyed against a 180° mis-mate, so orient the housing correctly before seating. Tin-on-tin contact interface (mating and post) keeps cost low for moderate mating-cycle applications; for repeated connect/disconnect cycles, the tin plating wears faster than gold, but for a one-time harness assembly it is adequate.

Sourced per RFQ; confirm BOM quantity and lead time at time of order.

Frequently asked questions

What is the pitch of 1-640454-2?

0.100" (2.54mm) pitch, single row.

Is 1-640454-2 RoHS compliant?

Yes, ROHS3 compliant.

What is the mating connector for 1-640454-2?

Any MTA-100 IDC receptacle or crimp housing with 12 positions on 0.100" pitch mates with this header. The single-wall shroud accepts the standard MTA-100 housing profile.
