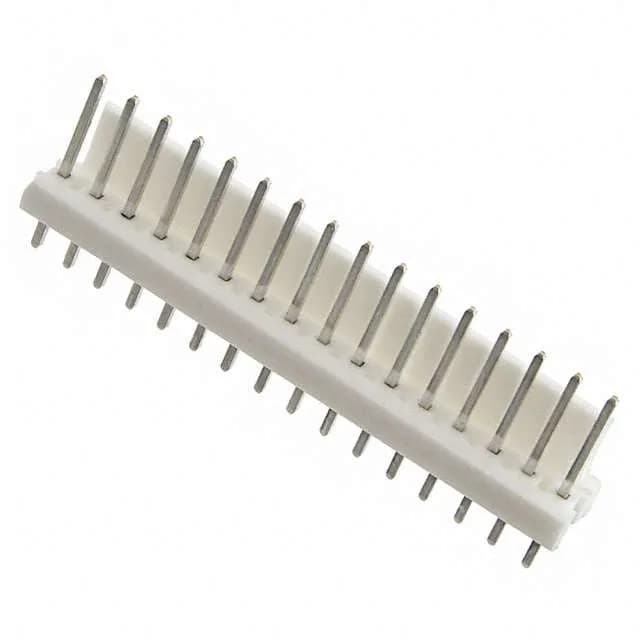

TE Connectivity AMP Connectors MTA-100 series, 1-640454-6, Board to Cable/Wire header, 16 circuits, 0.100" (2.54mm) pitch, single-row, shrouded 1-wall, through-hole solder termination, tin-plated contacts, UL94 V-0 natural thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The header is shrouded on one wall, which polarizes the mating interface.
Lifecycle status is Active, with no LTB or NRND flag. The part is ROHS3 compliant. Packaging is Bulk, which means the parts ship in a tube or bag rather than on a reel. For high-volume pick-and-place, a tape-and-reel variant may exist under a different order code in the 640454 base number family.
