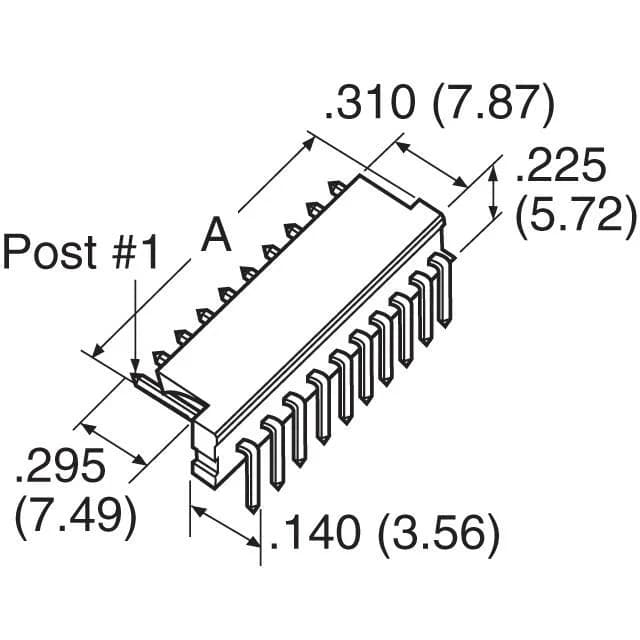

TE Connectivity AMP Connectors MTA-100 header, 1-640455-0, 10 positions, single row, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded one wall, tin-plated male pins, UL94 V-0, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.225\" (5.72mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The 1-640455-0: Voltage rating is 250 VAC, suitable for signal-level and low-power AC circuits in general-purpose applications.
ROHS3 compliant, meeting the latest EU restriction-of-hazardous-substances directive for lead, mercury, cadmium, and other substances.
The pitch is 0.100" (2.54 mm), center-to-center between adjacent pins.
Yes, it is ROHS3 compliant.
It has 10 positions, all loaded, in a single row.
It is a through-hole, right-angle mount — the pins are soldered into plated through-holes and exit the board parallel to the PCB surface.
Yes, it has a one-wall shroud on one side of the pin field to guide the mating housing.
The style is Board to Cable/Wire, meaning it is designed to connect a PCB to a discrete wire harness via a mating receptacle housing.
