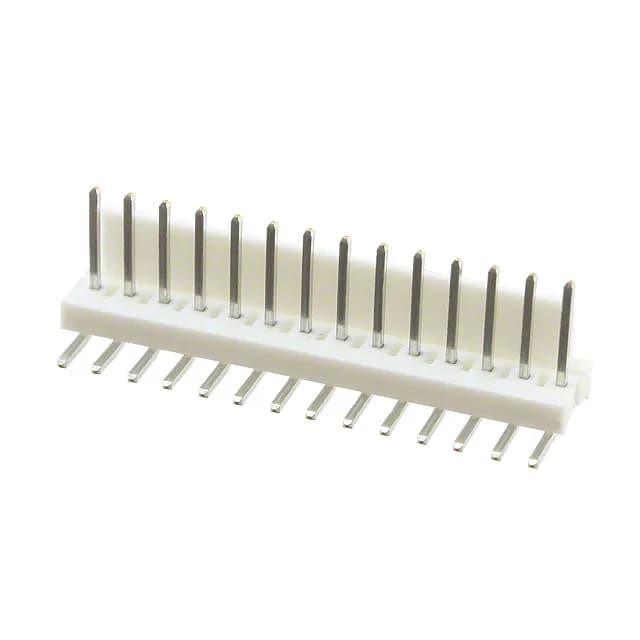

TE Connectivity AMP Connectors MTA-100 header, 1-640455-4, 14-position single-row, 0.100" (2.54mm) pitch, through-hole right-angle, tin-plated male pins, shrouded 1 wall, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.225\" (5.72mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
Single-wall shrouding provides basic polarization during mating but leaves one side of the pin row exposed.
Both mating and post surfaces are tin-plated, suitable for cost-sensitive designs with limited mating cycles.
Yes, it is ROHS3 compliant per the manufacturer.
