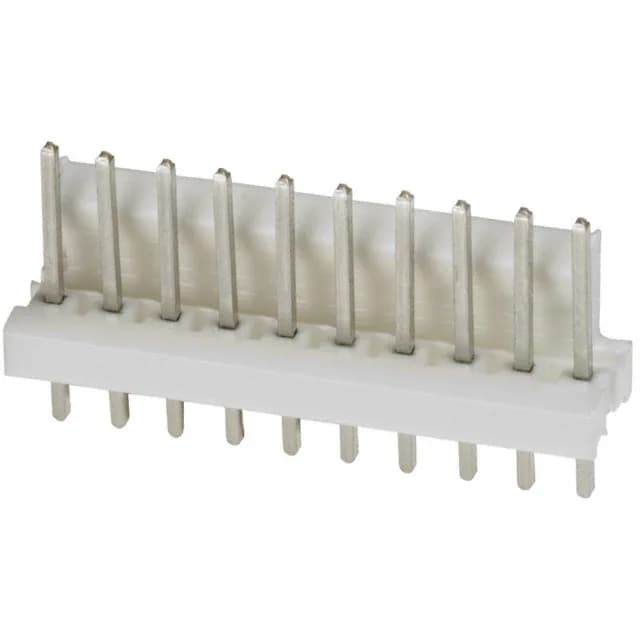

TE Connectivity AMP Connectors MTA-100 header, 1-640456-0, Board to Cable/Wire, 10 positions, 0.100" (2.54mm) pitch, single row, shrouded-1 wall, friction lock, through-hole solder termination, tin-plated male pins, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The 1-640456-0 is a vertical through-hole header from the MTA-100 series, designed for board-to-cable/wire interconnects. Operating temperature spans -55°C to 105°C.
The shrouding is a single wall on one side, which provides basic keying against mis-mating.
The pitch is 0.100" (2.54mm).
Yes, it is shrouded with a single wall (Shrouded - 1 Wall).
It mates with MTA-100 series IDC receptacles (e.g., 640441 series) that accept discrete wire or ribbon cable.
Yes, it is ROHS3 compliant.
