TE Connectivity AMP Connectors 1-640456-7 — Pin Headers

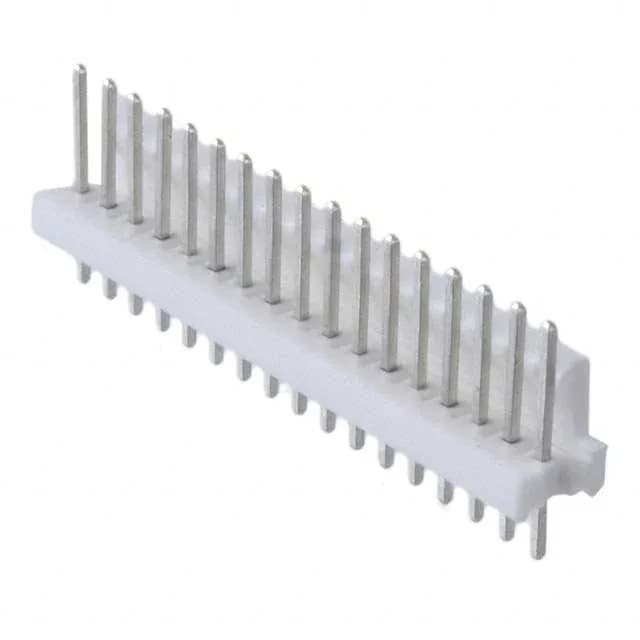

1-640456-7 TE Connectivity MTA-100 Header 17 Pos 2.54mm

MPN1-640456-7
Active

TE Connectivity MTA-100 header, 1-640456-7, 17-position single-row, 0.100" (2.54mm) pitch, shrouded 1 wall, friction lock, through-hole solder termination, tin-plated contacts, UL94 V-0.

$1.3700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-640456-7 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.305\" (7.75mm)
Insulation materialThermoplastic

All specifications

1-640456-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions17
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Overall contact length0.535\" (13.59mm)
Contact finish - matingTin
Contact length - mating0.295\" (7.49mm)

Product details

17-position MTA-100 header with friction lock

The 1-640456-7: This is a single-row, 17-position header from the MTA-100 series, pitched at 0.100" (2.54mm) — the same spacing as legacy 0.100-inch ribbon cable and many IDC connectors. The 1-wall shroud guides the mating housing straight on, and the friction lock keeps it latched under vibration without a secondary clip.

The through-hole termination has a post length of 0.140" (3.56mm) — enough for a standard 1.6mm PCB with good solder fillet. Overall contact length is 0.535" (13.59mm), so the mated stack height sits around the 0.300" mark. Single row keeps the board footprint narrow.

Listed as Active with no end-of-life notice.

Frequently asked questions

What connector mates with 1-640456-7?

It mates with a standard MTA-100 receptacle housing (e.g., 640441 series) using the matching crimp terminal.
