TE MTA-100, 1-640457-6, Board to Cable/Wire Header, 16 positions, single row, 0.100" (2.54mm) pitch, through-hole right-angle, friction lock, tin mating finish, UL94 V-0, -55°C ~ 105°C.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.225\" (5.72mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |

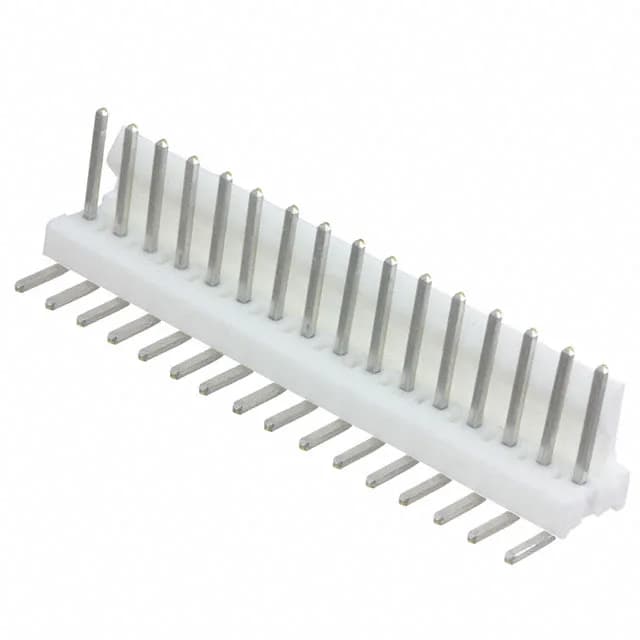

The 1-640457-6 is a 16-position, single-row header from the TE MTA-100 series, terminated through-hole with a right-angle orientation.
At 0.100" (2.54mm) pitch, this header matches the standard MTA-100 IDC receptacle footprint. The contact mating length is 0.295" (7.49mm), and the post length below the insulator is 0.140" (3.56mm) — enough for a standard 1.6mm PCB but not for a thick backplane.
RoHS3 compliant.
Yes, the mounting type is Through Hole, Right Angle. The pins exit perpendicular to the board surface, routing the wire parallel to the PCB.
