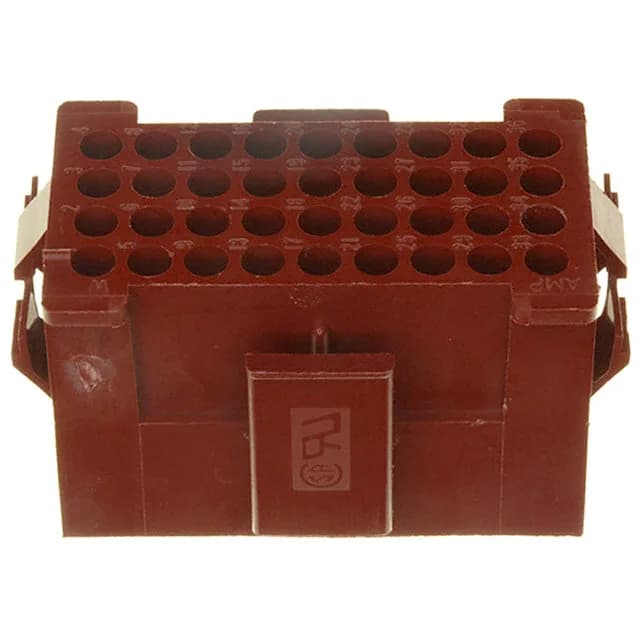

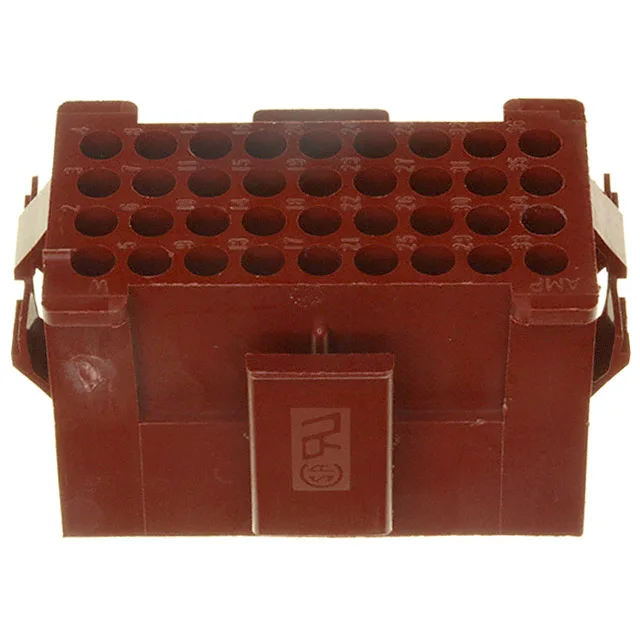

TE Connectivity MR (Miniature Rectangular) series, 1-640516-0, 36-position receptacle housing, 4.20mm pitch, 4 rows, panel mount snap-in, latch lock, crimp termination, PA nylon, -55°C to 85°C.
| Parameter | Value |
|---|---|
| Series | MR (Miniature Rectangular) |
| Type | Male Pin |
| Mounting | Panel Mount, Snap-In |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -55°C ~ 85°C |
| Color | Black or Red |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.165\" (4.20mm) |
| Package | Bulk |
| Row spacing | 0.165\" (4.20mm) |
| Rows | 4 |
| Contact termination | Crimp |
| Positions | 36 |
The 4.20 mm pitch is standard for the MR series; the crimp terminals are typically ordered by wire gauge (18-22 AWG common for this class). The panel mount, snap-in feature lets you seat the housing into a panel cutout without hardware, which speeds up field replacement — pop the old housing out, snap the new one in, re-pin with the existing harness if the terminals are still good.
The 1-640516-0 is sourced to order through independent distribution.
The 1-640516-0 accepts male pin crimp terminals — the contacts are not included with the housing. Order the matching TE MR series crimp pins separately for the wire gauge in your harness.
