TE Connectivity AMP Connectors 1-641126-2 — Pin Headers, Sockets & Housings

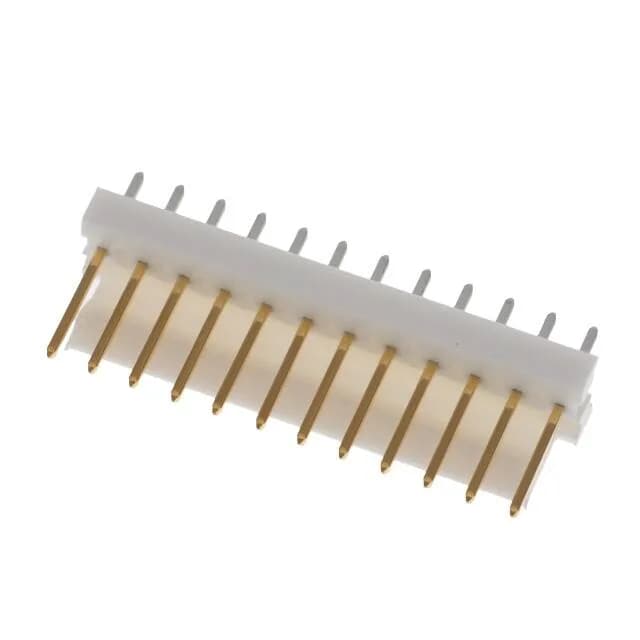

TE MTA-100 1-641126-2 Header, 12 Pos, 0.100" Pitch, Obsolete

MPN1-641126-2
Obsolete

TE Connectivity AMP Connectors MTA-100 header, order code 1-641126-2, 12 positions, single row, 0.100" (2.54 mm) pitch, 250 VAC, gold-plated mating contacts, through-hole, solder termination, friction lock.

$2.6000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-641126-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1-641126-2 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.305\" (7.75mm)
Insulation materialThermoplastic

All specifications

1-641126-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions12
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Overall contact length0.535\" (13.59mm)
Contact finish - matingGold
Contact length - mating0.295\" (7.49mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-to-wire header, 12 circuits, MTA-100 series

The 1-641126-2 is the 12-circuit member of TE's MTA-100 single-row shrouded header line, designed for board-to-cable/wire applications. Gold-plated mating contacts rated 250 VAC, through-hole mounting, and a friction lock for retention against vibration.

Obsolete — no production

TE Connectivity AMP Connectors lists the 1-641126-2 as Obsolete. Available through surplus channels; quantities confirmed at RFQ. A board spin is required for any functional replacement.
