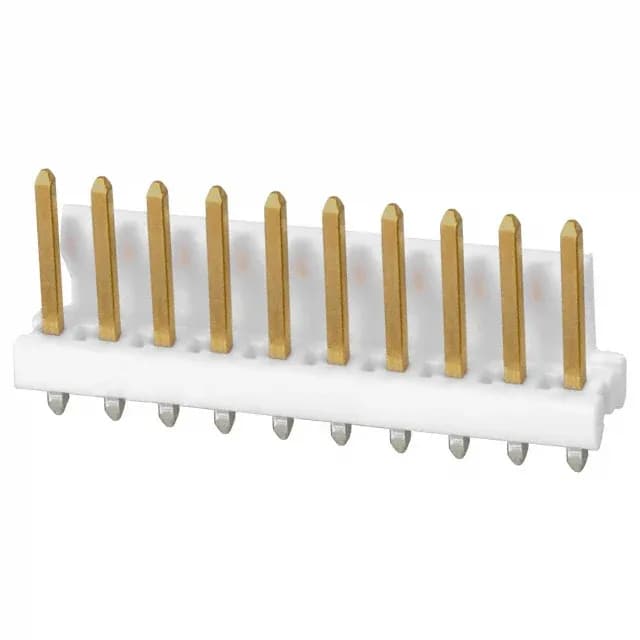

TE Connectivity AMP Connectors MTA-156 header, order code 1-641208-0, 10 positions, single row, 0.156" (3.96mm) pitch, 600VAC, gold-plated mating contacts, through hole, solder termination, friction lock.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-641208-0 is a 10-circuit shrouded header from the MTA-156 series, mates with matching MTA-156 receptacle housings for board-to-wire connections.
Active lifecycle — ships in bulk packaging. Quoted to order against BOM quantity; availability confirmed at RFQ.
It mates with MTA-156 receptacle housings (same series).
RoHS and REACH compliance documentation is available per TE Connectivity standard declarations.
