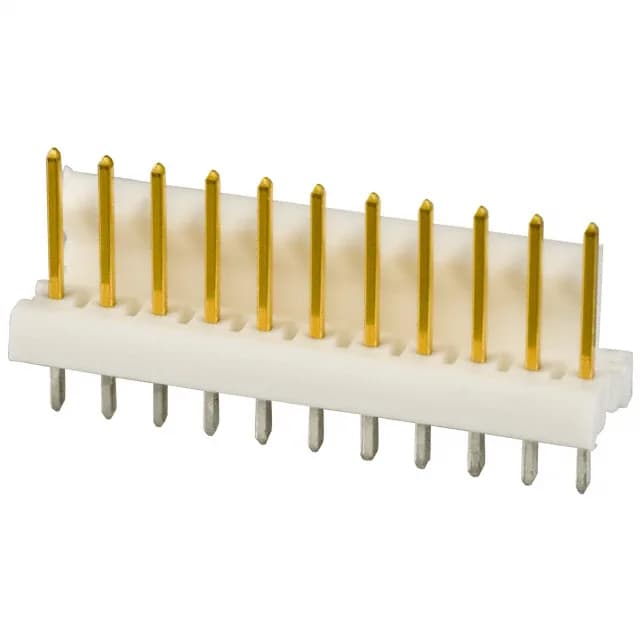

TE Connectivity AMP Connectors MTA-100 header, order code 1-641215-1, 11 positions, single row, 0.100" (2.54mm) pitch, 250VAC, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-641215-1 is an 11-position, single-row header from the TE Connectivity MTA-100 series, designed for board-to-wire connections. Gold-plated mating contacts rated for 250VAC with a through-hole solder termination.
The 1-641215-1 is listed as obsolete by TE Connectivity AMP Connectors. Remaining stock is available through independent surplus channels; quantities are confirmed at time of RFQ. A board-spin to a current-production header is required for new designs.
The part is available through independent surplus distributors. Pricing and availability are confirmed per RFQ against the required quantity.
RoHS and REACH compliance status should be verified against the manufacturer's documentation for the specific date code.
