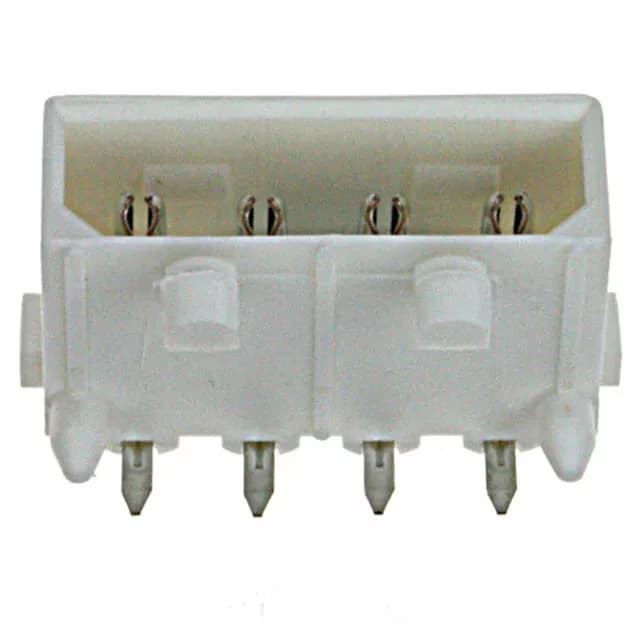

TE Connectivity AMP Connectors Commercial MATE-N-LOK header, 4 circuits, 5.08 mm pitch, 12 A, 250 VAC, right-angle through-hole, shrouded 4-wall, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 12A |
| Operating temperature | -55°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | White |
| Insulation height | 0.345\" (8.76mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Contact finish - mating | Tin |
The 1-641737-1: This 4-position right-angle header from the Commercial MATE-N-LOK series connects a board to a wire harness, carrying up to 12 A per circuit at 250 VAC. The 5.08 mm pitch leaves room for routing higher-current traces between pins, while the shrouded 4-wall design prevents bent pins during blind mating.
ROHS3 compliant;.
The 5.08 mm pitch and friction lock are specific to the series — confirm the circuit count and keying match your harness side.
