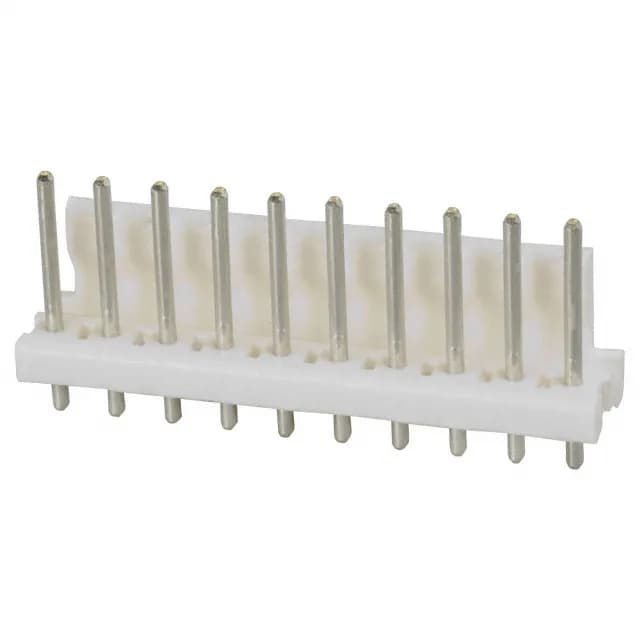

TE Connectivity AMP Connectors MTA-156 series, 1-644753-0, Board to Cable/Wire header, 10 circuits, single row, 0.156" (3.96mm) pitch, shrouded 1 wall, friction lock, through hole solder termination, tin-plated contacts, UL94 V-0 natural housing.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Overall contact length | 0.700\" (17.78mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
This is a 10-position, single-row header from the MTA-156 series, pitched at 0.156" (3.96mm) — the standard spacing for power and signal distribution in appliance and industrial wire-to-board connections.
Tin-plated mating surface and post — rated for general-purpose duty where mating cycles are moderate.
Yes. The 0.156" (3.96mm) pitch, single-row layout, and friction lock are designed to mate with standard MTA-156 receptacle housings using the matching crimp terminals. Confirm the receptacle part number has the same circuit count and locking feature.
