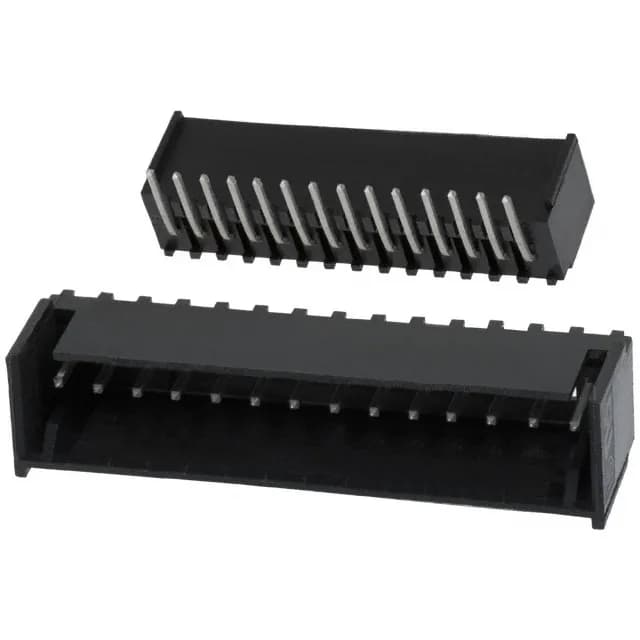

TE Connectivity AMP MTA-100 series, 1-644803-4, Board to Cable/Wire, Header, Male Pin, 14 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder, Shrouded - 4 Wall, Friction Lock, Tin-Lead Contact Finish Mating, UL94 V-0
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.343\" (8.71mm) |
| Insulation material | Polyester |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.200\" (5.08mm) |
No official pin-compatible successor is recorded from the original manufacturer.
Post contacts are also tin-lead, 0.130" (3.30mm) long, for through-hole solder termination. The square pin shape (0.025" square typical for MTA-100) provides reliable solder joint formation.
