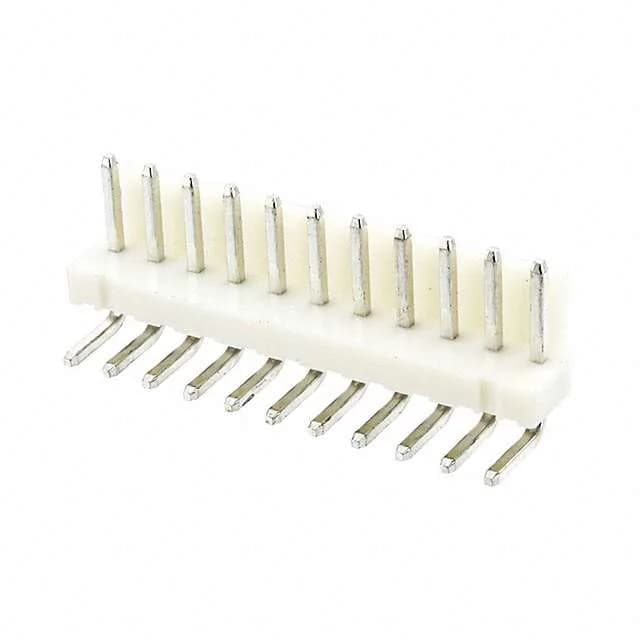

TE Connectivity AMP Economy Power header, order code 1-647676-1, 11 positions, single row, 3.96 mm pitch, 7.5 A, 250 VAC, tin-plated mating contacts, through-hole right-angle, solder termination, locking ramp.
TE 1-647676-1 Economy Power Header, 11 Pos 3.96mm
MPN1-647676-1
Active
TE Connectivity AMP Economy Power header, order code 1-647676-1, 11 positions, single row, 3.96 mm pitch, 7.5 A, 250 VAC, tin-plated mating contacts, through-hole right-angle, solder termination, locking ramp.
$0.6881Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.338\" (8.59mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
Product details
Frequently asked questions
What compliance documentation is available for 1-647676-1?
The header uses a UL94 V-0 rated PA66 housing and tin-plated brass contacts. RoHS and REACH compliance documentation is available from TE Connectivity per the standard product drawing.
