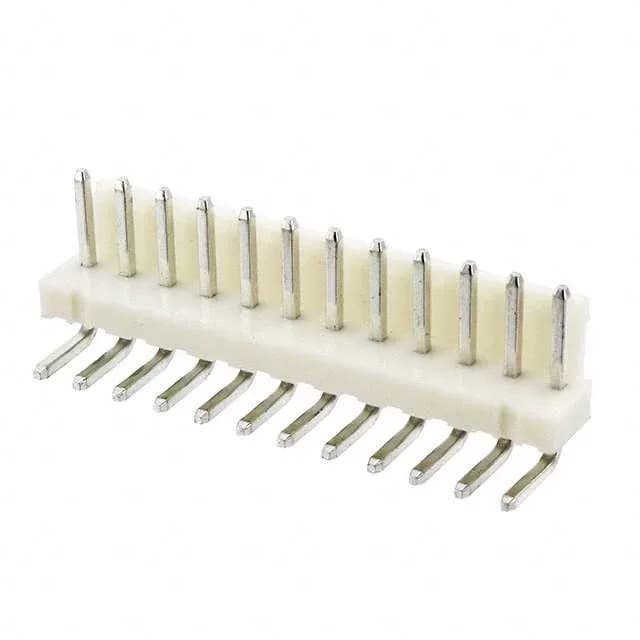

TE Connectivity AMP Connectors Economy Power series, 1-647676-2, a 12-position single-row right-angle header, 3.96 mm pitch, 7.5 A per circuit at 250 VAC, tin-plated brass contacts, friction lock, through-hole solder termination, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.338\" (8.59mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1-647676-2 is a 12-position, single-row header from TE's Economy Power series, pitched at 3.96 mm. It mates with a corresponding cable receptacle, making it a straight board-to-wire interconnect for power and signal distribution inside an enclosure.
The pitch is 3.96 mm (0.156").
It mates with an Economy Power receptacle housing (typically a 12-position, single-row housing) that accepts the matching crimp terminals. Confirm the specific housing part number from the series documentation.
