TE Connectivity AMP Connectors 1-747944-5
MPN1-747944-5
Active

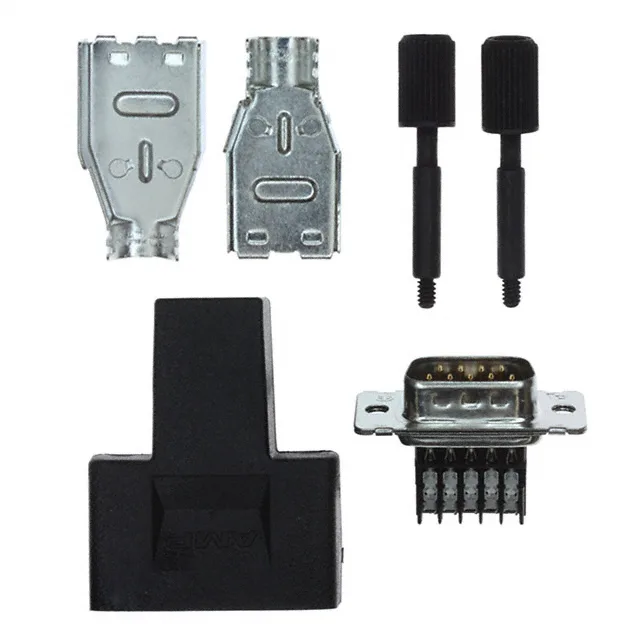

CONN D-SUB PLUG 9POS IDC
$16.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HDE-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDE-20 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Wire gauge | 22-26 AWG |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Cover, Grounding Indents, Mounting Screws, Shielded |
| Termination | IDC, Discrete Wire |
| Contact finish | Gold |
| Flange feature | Cable Side, Male Jackscrew (4-40) |
| Rows | 2 |
| Positions | 9 |
