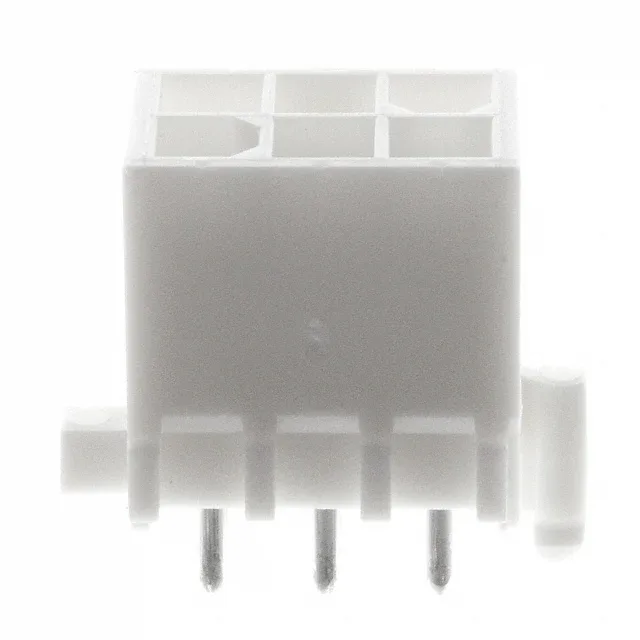

TE Connectivity AMP Mini-Universal MATE-N-LOK, Header, Board to Cable/Wire, 6 Positions, 2 Rows, 0.163" (4.14mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Locking Ramp, Board Lock, Tin Contact Finish, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | Mini-Universal MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -20°C ~ 85°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.531\" (13.50mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.163\" (4.14mm) |
| Positions | 6 |
| Row spacing - mating | 0.163\" (4.14mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Both the mating pitch and row spacing are 0.163" (4.14mm), creating a uniform grid that aligns with the matching receptacle. A board lock feature on the through-hole solder tails holds the component in place during wave soldering and provides additional strain relief against cable pull forces.
This header mates with a Mini-Universal MATE-N-LOK receptacle housing (e.g., the 1-480700-0 series) that accepts the matching crimp terminals. The 0.163" (4.14mm) pitch and locking ramp are common across the family, so any Mini-Universal MATE-N-LOK receptacle with the same circuit count and orientation will mate.
Yes, 1-770178-0 is ROHS3 compliant.
